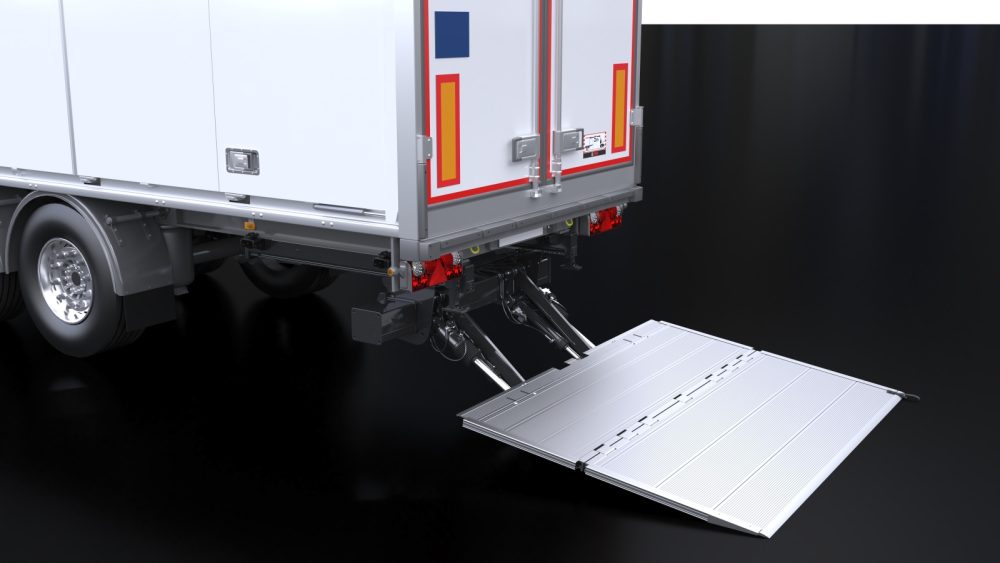

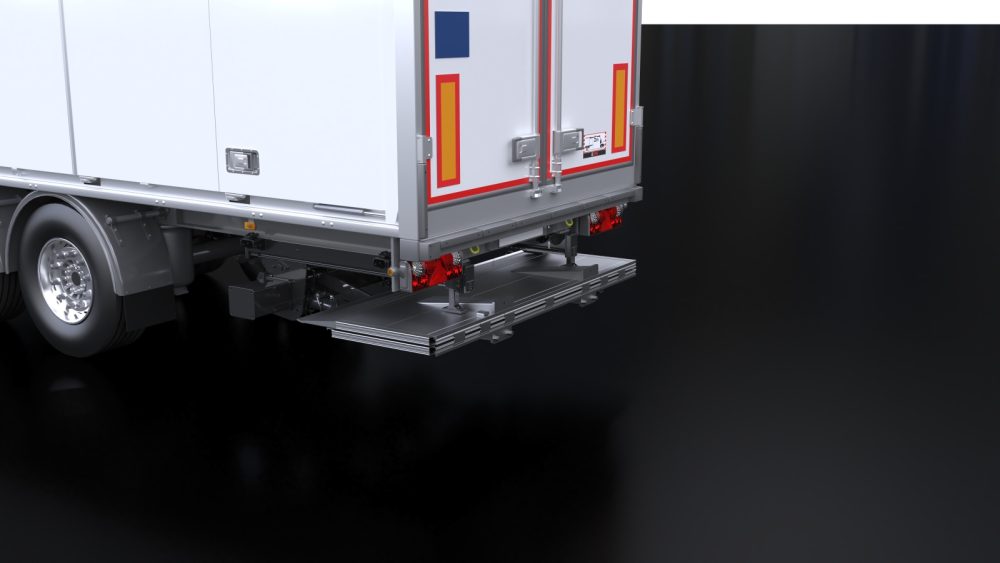

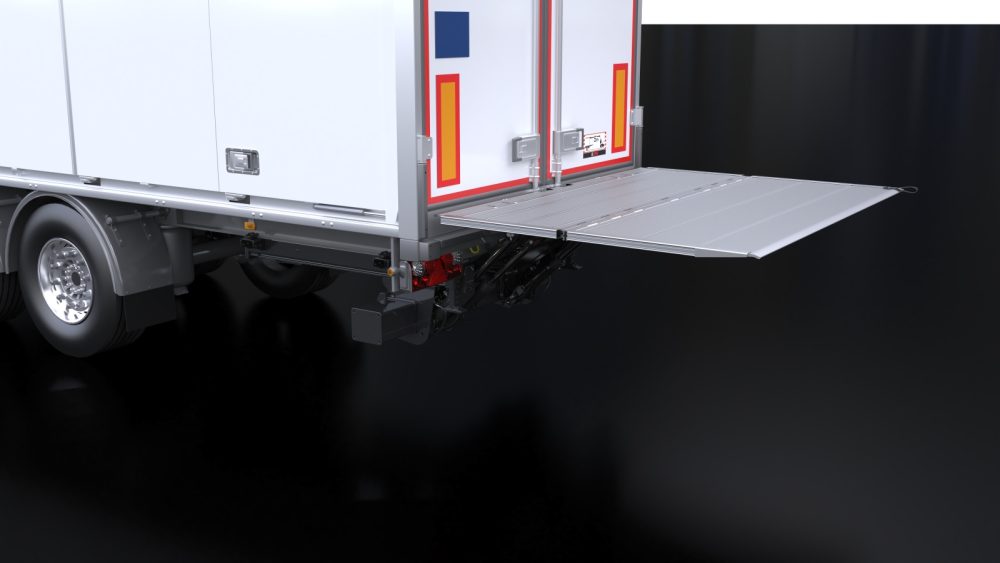

ZEPRO ZT 200/250 Mk2 tail lift for trailers
The ZEPRO ZT 200/250 Mk2 is a heavy-duty sliding tail lift with a single-fold platform, for trailers and semi-trailers – with load capacities of 2,000 and 2,500 kg.
The ZEPRO ZT 200/250 Mk2 is a heavy-duty sliding (retractable) tail lift with a single-fold platform, intended for installation on trailers and semi-trailers. Available in load capacities of 2,000 and 2,500 kg.
A coated high-strength steel frame, corrosion-protected cylinders and a new electronic control system make it the perfect choice for heavy vehicles. The sliding system is driven by a hydraulic motor with two sprockets for smooth operation, and the built-in hydraulic unit keeps noise to a minimum and protects sensitive components.
- Spring-assisted folding aluminum platform – low weight and easy manual handling
- Slimline design for maximum vehicle clearance
- Lifting height up to 1510 mm, platform width up to 2400 mm
- ZEPRO Clearoil filter – clean oil and less hydraulic wear
- Load roll stops (Rollstops) and warning lights
| Technical specifications | ZT 200-135 | ZT 200-155 | ZT 250-135 | ZT 250-155 |
|---|---|---|---|---|
| Load capacity (kg) | 2000 | 2000 | 2500 | 2500 |
| Platform | aluminum | aluminum | aluminum | aluminum |
| Max. platform length (mm) | 1965 | 1965 | 1965 | 1965 |
| Max. platform width (mm) | 2400 | 2400 | 2400 | 2400 |
| Lift height (mm) | 1330 | 1510 | 1330 | 1510 |
Detailed technical specifications for each version are available on request.
