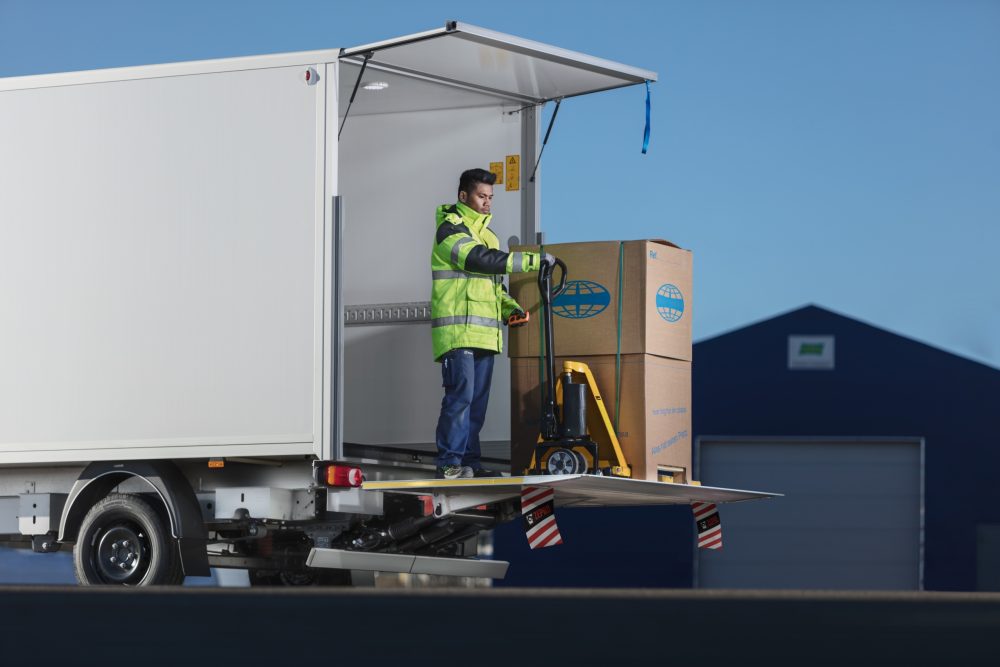

ZEPRO Z3N tail lift for trucks
The ZEPRO Z3N is a light cantilever tail lift with a load capacity of up to 750 kg, for trucks up to 3.5 t with rear, front or all-wheel drive – in three frame widths.
The ZEPRO Z3N is one of the lightest and most versatile tail lifts on the market, leaving the vehicle with the maximum payload. The load capacity of the lift is up to 750 kg, and it is available in three frame widths, for all trucks up to 3.5 t with rear, front or all-wheel drive.
The weight of the lift starts at 152 kg, without the protective bumper. The standard version includes cables, frame brackets and control units, and it can be configured according to specific needs.
- Wide choice of mounting brackets – fast and easy installation
- Double-acting tilt cylinders – fast loading and unloading regardless of weather and temperature
- Rollstops (wheeled cargo stops) – protection for goods and workers
- Additional control units – fixed, with coiled cable or radio
- Warning lights – switch on automatically when the platform is lowered to a horizontal position
| Technical specifications | Z3N 75-100 |
|---|---|
| Load capacity (kg) | 750 |
| Platform | aluminum |
| Max. platform length (mm) | 1600 |
| Max. platform width (mm) | 2400 |
| Lift height (mm) | 1000 |
Detailed technical specifications for each version are available on request.
