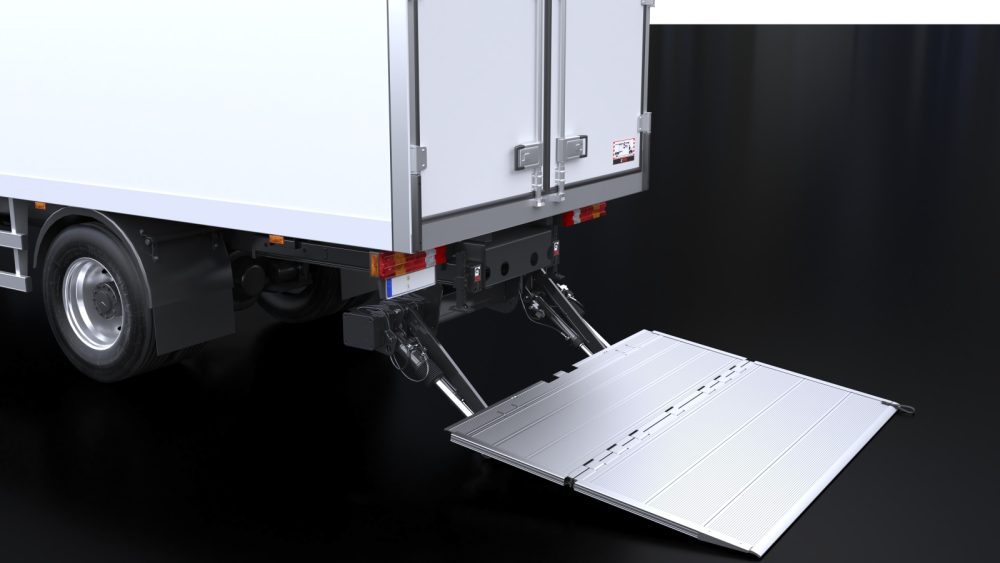

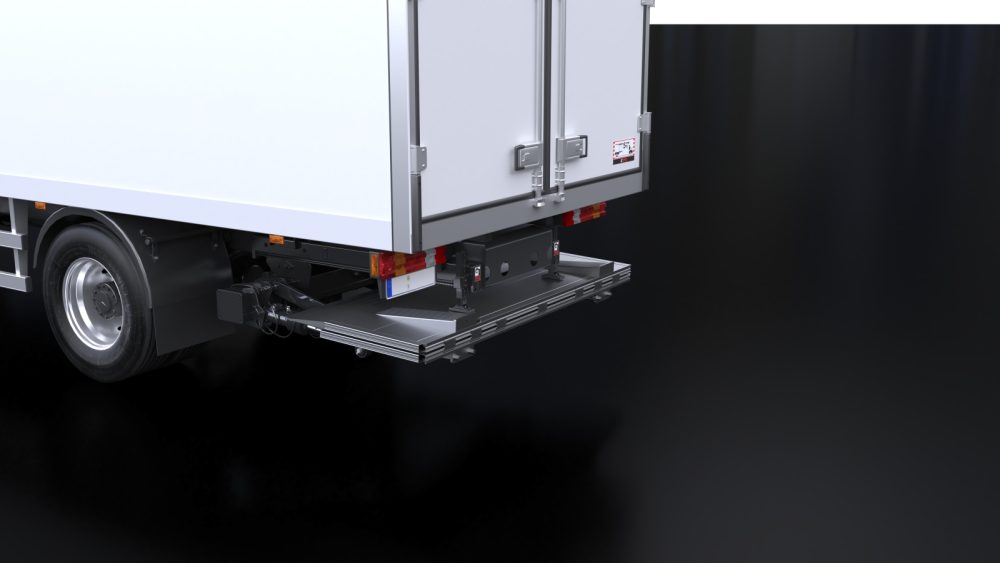

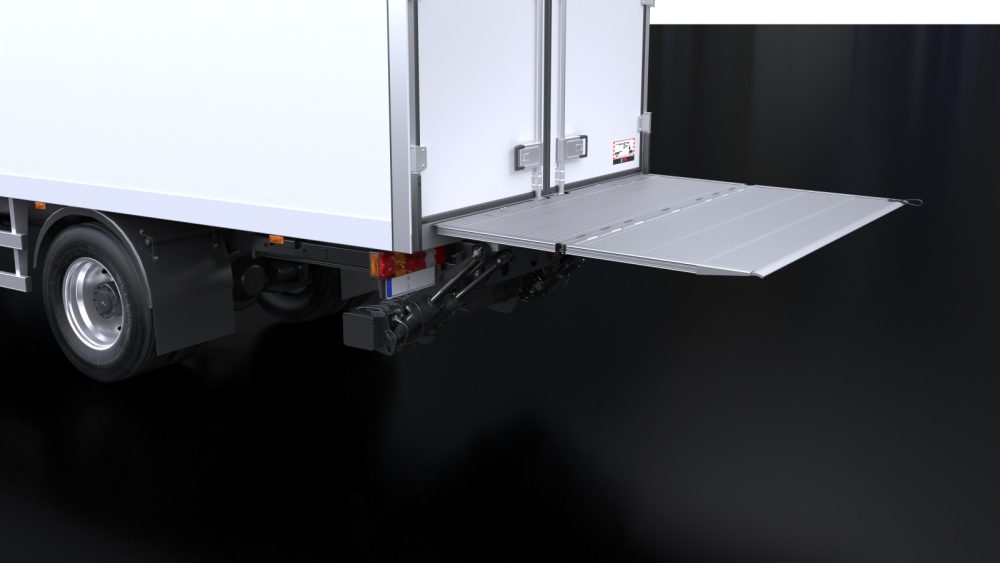

ZEPRO ZS 150/200/250 Mk2 truck tail lift
ZEPRO ZS 150/200/250 Mk2 is a heavy-duty sliding tail lift with a single-fold platform, for trucks with a gross weight over 12 t – with load capacities of 1500, 2000 and 2500 kg.
ZEPRO ZS 150/200/250 Mk2 is a heavy-duty sliding (retractable) tail lift with a single-fold platform, designed for trucks with a gross weight over 12 t. It is available in load capacities of 1500, 2000 and 2500 kg.
A coated high-strength steel frame, corrosion-protected cylinders and a new electronic control system make it the perfect choice for heavy trucks. The sliding system is driven by a hydraulic motor with two sprockets for smooth operation, and the built-in hydraulic unit keeps noise to a minimum and protects sensitive components.
- Spring-assisted folding aluminum platform – low weight and easy manual handling
- Slimline design for maximum vehicle clearance
- Lifting height up to 1700 mm
- ZEPRO Clearoil filter – clean oil and less hydraulic wear
- Load roll stops (Rollstops) and warning lights
| Technical specifications | Value |
|---|---|
| Load capacity (kg) | 1500 – 2500 |
| Platform | aluminum |
| Max. platform length (mm) | 1965 |
| Max. platform width (mm) | 2400 |
| Lift height (mm) | 1330 – 1700 |
| Number of versions | 8 |
| Available versions | ZS 150-135, ZS 150-155, ZS 150-175, ZS 200-135, ZS 200-155, ZS 200-175, ZS 250-135, ZS 250-155 |
Detailed technical specifications for each version are available on request.
