ZEPRO ZHZ 500 tail lift for vans
The ZEPRO ZHZ 500 is a tail lift for vans with a 500 kg load capacity, made of high-strength steel – the first choice for city distribution, with free access to the rear doors.
The ZEPRO ZHZ 500 is a tail lift for closed delivery vehicles (vans), with a 500 kg load capacity. The robust high-strength steel construction makes it the first choice for city distribution.

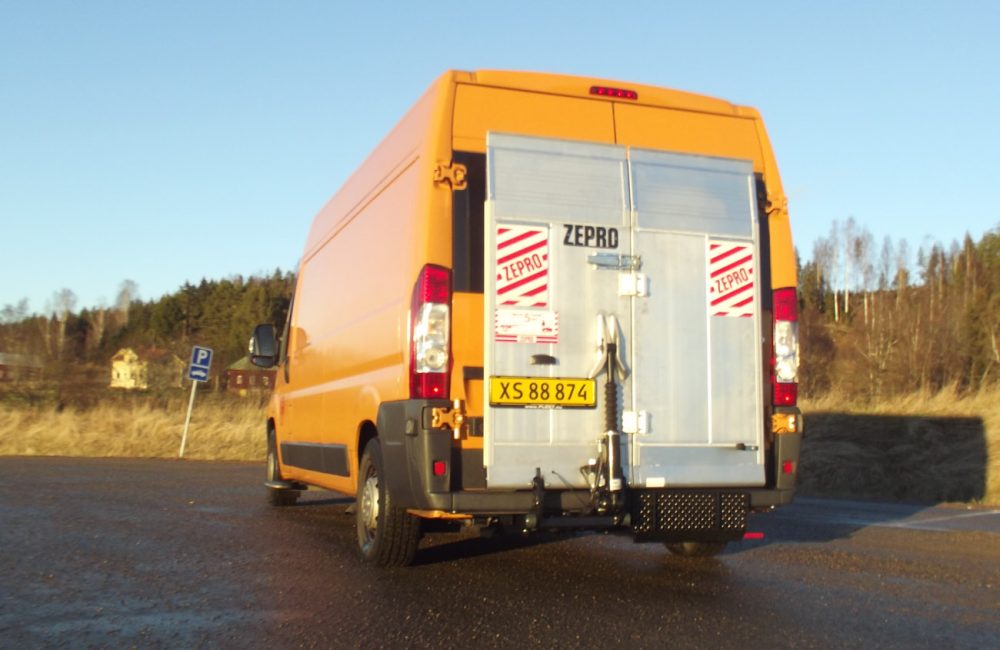

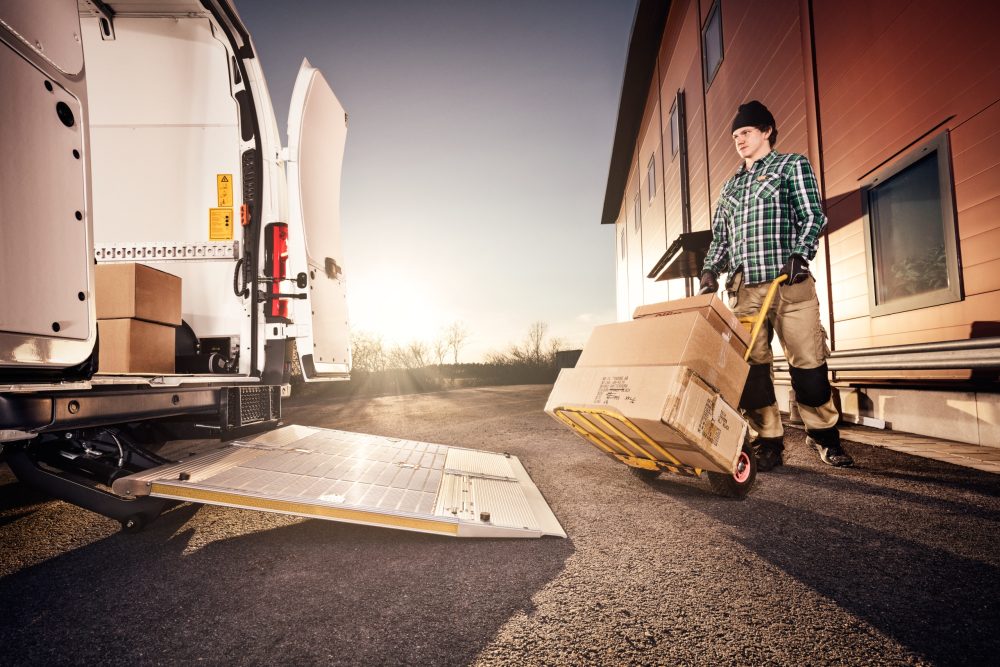

When the lift is folded, the rear entrance to the vehicle remains accessible, whether a standard or a foldable platform is used. The foldable platform can be locked in the open position and used as a full platform. The series is made in three frame widths, for all larger van models.
- Aluminum platform up to 1,700 mm long, lifting height 850 mm
- Rollstops (wheeled cargo stops) – protection for goods and workers
- Side ramps – loading from the side of the platform, and from a ramp or sidewalk
- Additional control units – fixed, with coiled cable or radio
- Warning lights – switch on automatically when the platform is lowered to a horizontal position
| Technical specifications | ZHZ 500-85 |
|---|---|
| Load capacity (kg) | 500 |
| Platform | aluminum |
| Max. platform length (mm) | 1700 |
| Max. platform width (mm) | 1400 |
| Lift height (mm) | 850 |
Detailed technical specifications for each version are available on request.
