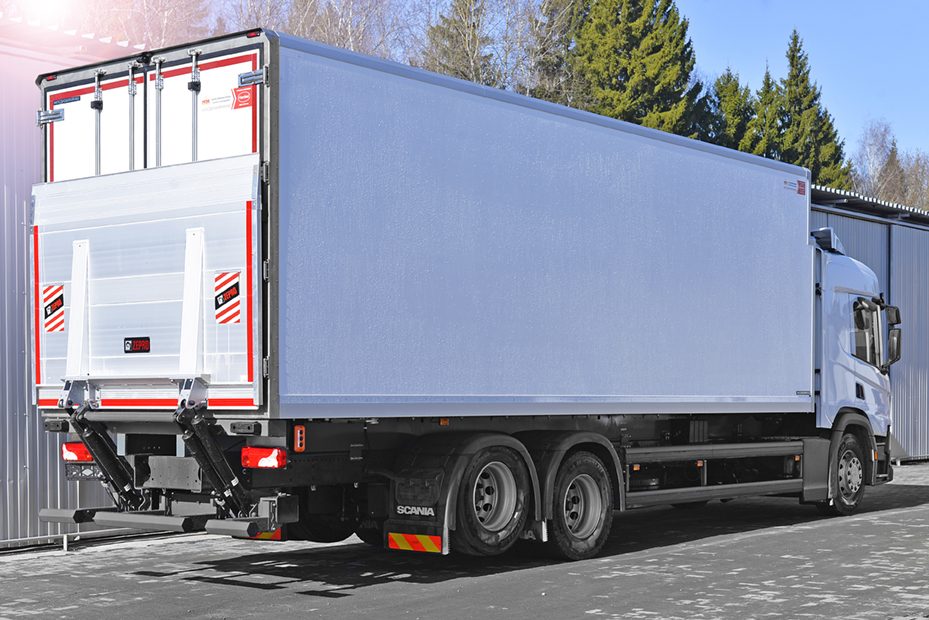

ZEPRO Z 15/20 tail lift for trucks
The ZEPRO Z 15/20 is a robust cantilever tail lift with a load capacity of up to 2,000 kg, for trucks with a gross weight over 12 t – with box-section arms and simple control.
The ZEPRO Z 15/20 is a robust and versatile cantilever tail lift for medium to heavy-duty conditions, with a load capacity of up to 2,000 kg, intended for trucks with a gross weight over 12 t. It has box-section arms and a simple control system.
The built-in hydraulic unit minimizes noise and protects sensitive components. Steel and aluminum platforms are available in a wide choice of dimensions, and adjustable brackets and a protective bumper allow flexible placement and fast installation. Available in four versions, with load capacities of 1,500 and 2,000 kg.
- Rollstops (wheeled cargo stops) – protection for goods and workers
- Additional control units – fixed, with coiled cable or radio
- Side ramps – loading from the side of the platform, and from a ramp or sidewalk
- Warning lights – switch on automatically when the platform is lowered to a horizontal position
| Technical specifications | Z 15-130 | Z 15-150 | Z 20-130 | Z 20-150 |
|---|---|---|---|---|
| Load capacity (kg) | 1500 | 1500 | 2000 | 2000 |
| Platform | aluminum, steel | aluminum, steel | aluminum, steel | aluminum, steel |
| Max. platform length (mm) | 2200 | 2200 | 2200 | 2200 |
| Max. platform width (mm) | 2580 | 2580 | 2580 | 2580 |
| Lift height (mm) | 1300 | 1500 | 1300 | 1500 |
Detailed technical specifications for each version are available on request.
