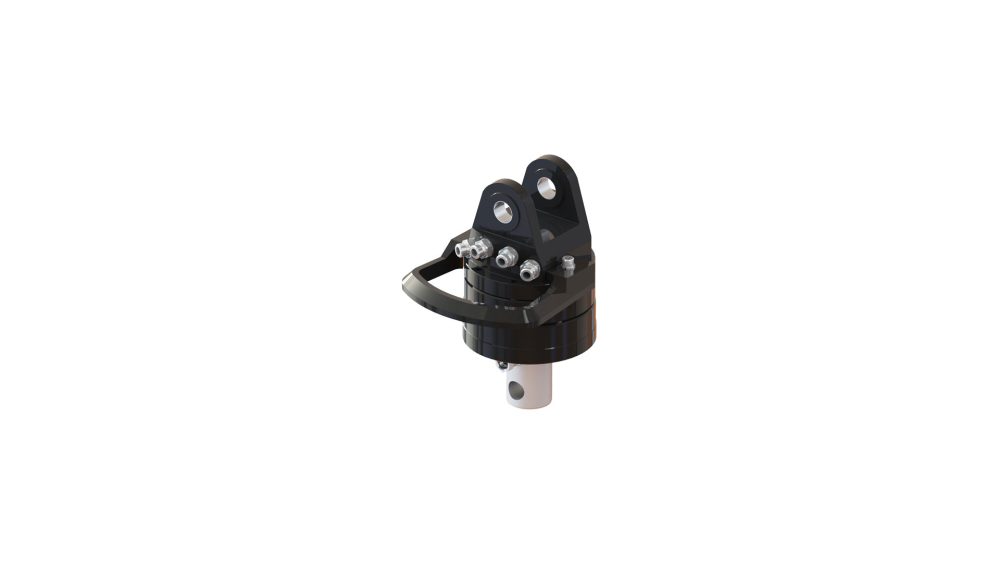

Rotator RX 60.69 with shaft, 6000 kg
The HIAB RX 60.69 is a rotator with a Ø 69 mm shaft and a load capacity of up to 6000 kg, with a vane motor and a torque of 1500 Nm.
The HIAB RX 60.69 is a rotator with a shaft for loader and forestry cranes, with a load capacity of up to 6000 kg. It is mounted between the crane tip and the attachment – a grab, bucket or other tool – and allows it to be rotated, for precise load positioning.
It is driven by a vane motor with a torque of 1500 Nm, and an oil flow of 25 l/min can be routed through the rotator to the attachment. The rotator is 368 mm high and 200 mm wide, and weighs 38 kg. It can also be ordered as a set with the 45/80 link.
With the 45/80 link, the height of the set is 507 mm and the weight is 52 kg. The table below shows all sizes with dimensions and weight. Send an inquiry and we will help you choose the version that suits your vehicle and outriggers.
- Load capacity up to 6000 kg
- Connection: Ø 69 mm shaft
- Vane motor, torque 1500 Nm
- Oil flow through the rotator 25 l/min
- Weight 38 kg
| Technical specifications | RX 60.69 |
|---|---|
| Catalog number | 9858059 |
| Load capacity (kg) | 6000 |
| Connection | shaft |
| Connection size | Ø 69 mm |
| Drive | vane motor |
| Torque (Nm) | 1500 |
| Oil flow through the rotator (l/min) | 25 |
| Height (mm) | 368 |
| Width (mm) | 200 |
| Weight (kg) | 38 |
Detailed technical specifications for each version are available on request.
