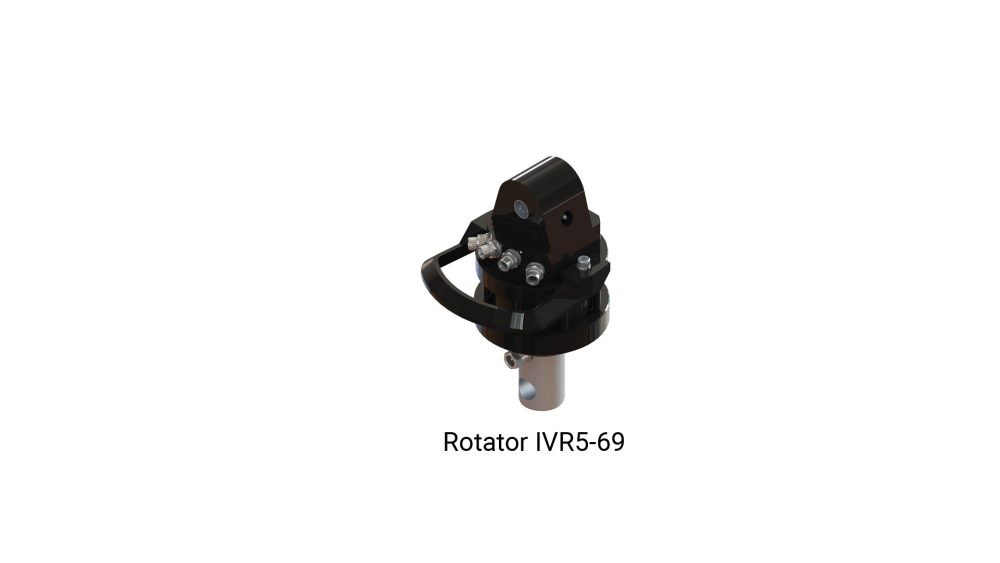

Rotator IVR 5 with shaft or flange, 5500 kg
The HIAB IVR 5 is a rotator with a shaft or flange and a load capacity of up to 5500 kg, with a vane motor and a torque of 1100 Nm.
The HIAB IVR 5 is a rotator with a shaft or flange, with a load capacity of up to 5500 kg. It is mounted between the crane tip and the attachment – a grab, bucket or other tool – and allows it to be rotated, for precise load positioning.
It is available in three versions: with a shaft diameter of 68 or 69 mm, or with a 4 x 140 mm flange. It is driven by a vane motor with a torque of 1100 Nm, and at 24 to 29 kg it is among the lighter rotators. It can also be ordered as a set with the 45/80 link.
With the 45/80 link, the height of the set is 451 to 490 mm, depending on the version. The table below shows all sizes with dimensions and weight. Send an inquiry and we will help you choose the version that suits your vehicle and outriggers.
- Load capacity up to 5500 kg
- Shaft Ø 68 or 69 mm, or 4 x 140 mm flange
- Vane motor, torque 1100 Nm
- Height from 312 to 351 mm, width 172 mm
- Weight from 24 to 29 kg
| Technical specifications | IVR5 – 68 | IVR5 – 69 | IVR5 – F |
|---|---|---|---|
| Catalog number | 3394656 | 3394657 | 9874178 |
| Load capacity (kg) | 5500 | 5500 | 5500 |
| Connection | shaft | shaft | flange |
| Connection size | Ø 68 mm | Ø 69 mm | 4 x 140 mm |
| Drive | vane motor | vane motor | vane motor |
| Torque (Nm) | 1100 | 1100 | 1100 |
| Height (mm) | 351 | 351 | 312 |
| Width (mm) | 172 | 172 | 172 |
| Weight (kg) | 24 | 24 | 29 |
Detailed technical specifications for each version are available on request.
