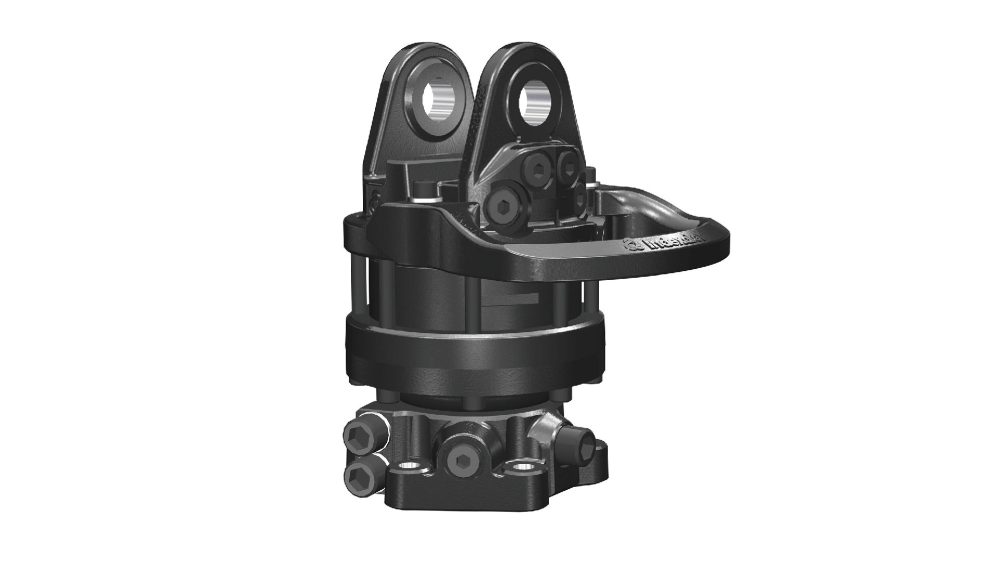

Rotator GV 6 with shaft or flange, 6000 kg
The HIAB GV 6 is a rotator with a load capacity of up to 6000 kg for lighter material handling, with a Ø 68 or 69 mm shaft or a flange.
The HIAB GV 6 is a rotator for lighter material handling, with a load capacity of up to 6000 kg. It is mounted between the crane tip and the attachment – a grab, bucket or other tool – and allows it to be rotated, for precise load positioning.
It is available in three versions: with a shaft diameter of 68 or 69 mm, or with a 6 x 173 mm flange. It is driven by a vane motor with a torque of 1400 Nm. The rotator height is 311 to 346 mm, the width 209 mm, and the weight 39 to 44 kg, depending on the version.
The shaft versions have catalog numbers 3399648 and 3399656, and the flange version 9847596. The table below shows all sizes with dimensions and weight. Send an inquiry and we will help you choose the version that suits your vehicle and outriggers.
- Load capacity up to 6000 kg
- Shaft Ø 68 or 69 mm, or flange
- Vane motor, torque 1400 Nm
- For lighter material handling
- Weight from 39 to 44 kg
| Technical specifications | GV6 – 68/30 | GV6 – 69/30 | GV6 – A |
|---|---|---|---|
| Catalog number | 3399648 | 3399656 | 9847596 |
| Load capacity (kg) | 6000 | 6000 | 6000 |
| Connection | shaft | shaft | flange |
| Connection size | Ø 68 mm | Ø 69 mm | Ø 6 x 173 mm |
| Drive | vane motor | vane motor | vane motor |
| Torque (Nm) | 1400 | 1400 | 1400 |
| Height (mm) | 311 | 311 | 346 |
| Width (mm) | 209 | 209 | 209 |
| Weight (kg) | 39 | 39 | 44 |
Detailed technical specifications for each version are available on request.
