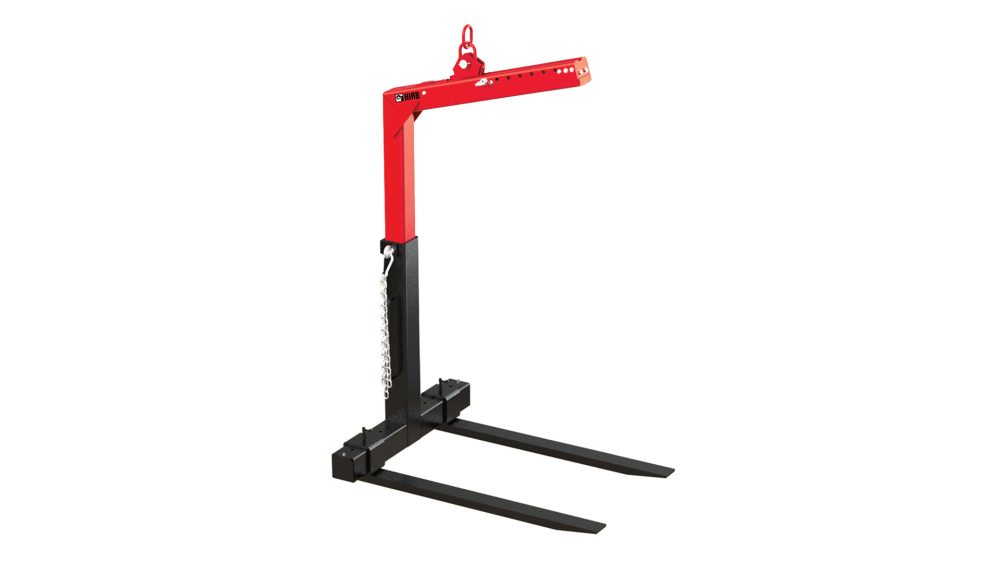

Pallet forks KM 415 with spring center-of-gravity adjustment
The HIAB KM 415 are robust pallet forks with a load capacity of 2000 kg, with spring-based center-of-gravity compensation and adjustable fork spacing.
The HIAB KM 415 are robust pallet forks with spring-based center-of-gravity compensation, easily adapted to different loads thanks to the adjustable grip depth and adjustable fork spacing. The load capacity is 2000 kg.
They are available in two versions, with a fork length of 980 or 1150 mm. They can also be ordered as a set with mount A for a hook, B for a rotator with shaft or C for a flange rotator, with a safety chain. Small and large protective grilles are available as an option.
Both versions are designed for hanging on a hook. The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Load capacity 2000 kg
- Spring-based center-of-gravity compensation
- Adjustable grip depth and fork spacing
- Fork length 980 or 1150 mm
- Weight from 150 to 180 kg
| Technical specifications | KM 415 – 2000-500 | KM 415 – 2000-600 |
|---|---|---|
| Catalog number | 9854436 | 9855742 |
| Load capacity (kg) | 2000 | 2000 |
| Connection | hook | hook |
| Fork length (mm) | 980 | 1150 |
| Fork spacing (mm) | up to 940 | up to 940 |
| Weight (kg) | 150 | 180 |
Detailed technical specifications for each version are available on request.
