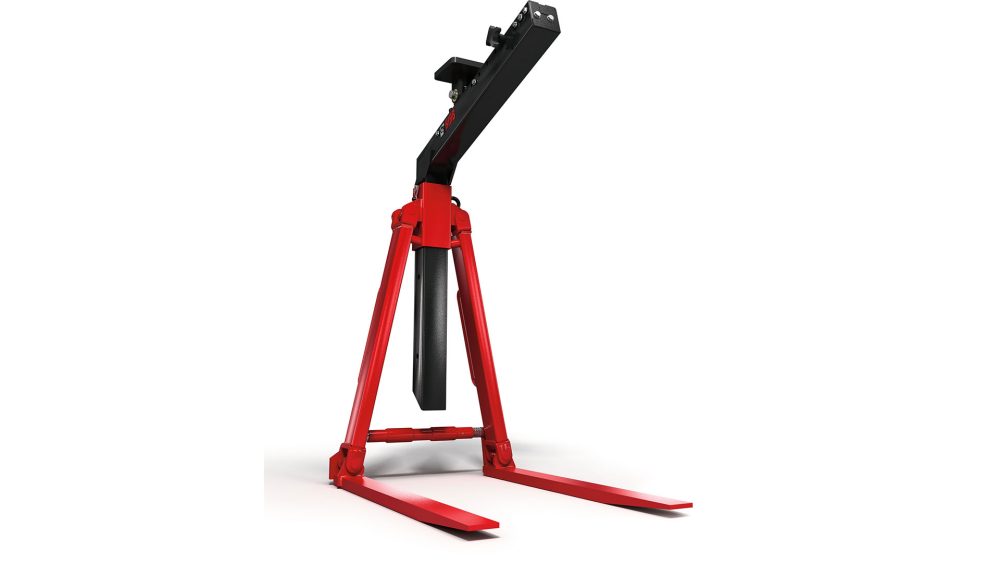

Pallet forks KM 401 with three-point suspension adjustment
The HIAB KM 401 are pallet forks with a load capacity of 2000 kg and fork spacing adjustable by spindle, in fork lengths of 980 and 1150 mm.
The HIAB KM 401 are pallet forks with a load capacity of 2000 kg and fork spacing adjustable by spindle. They are designed for working with pallets using a loader crane, and can be adjusted for different pallets and loads.
They are available in two versions: with forks of 100 x 35 mm cross-section and 980 mm length, or 100 x 50 mm cross-section and 1150 mm length. They can also be ordered as a set with mount C for a flange rotator and a safety chain, with optional small and large protective grilles.
Both versions have a load capacity of 2000 kg and differ in fork cross-section and length. The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Load capacity 2000 kg
- Fork spacing adjustable by spindle, from 495 to 840 mm
- Fork cross-section 100 x 35 or 100 x 50 mm
- Fork length 980 or 1150 mm
- Weight from 135 to 170 kg
| Technical specifications | KM 401 – 2000-500 | KM 401 – 2000-600 |
|---|---|---|
| Catalog number | 9854398 | 9855700 |
| Load capacity (kg) | 2000 | 2000 |
| Fork cross-section (mm) | 100 x 35 | 100 x 50 |
| Fork length (mm) | 980 | 1150 |
| Fork spacing (mm) | 495–835 | 500–840 |
| Weight (kg) | 135 | 170 |
Detailed technical specifications for each version are available on request.
