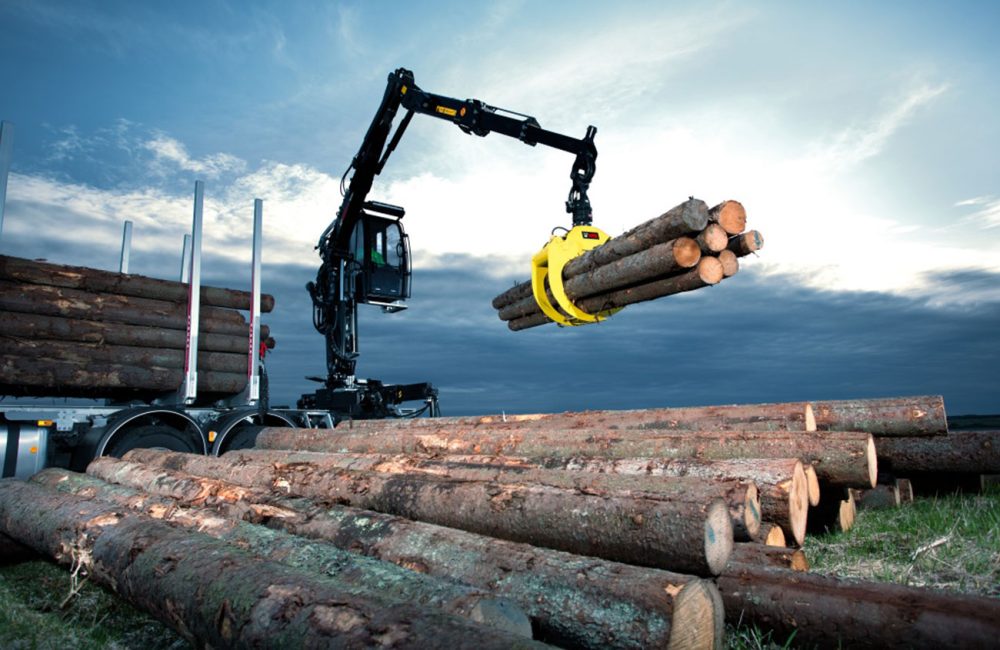

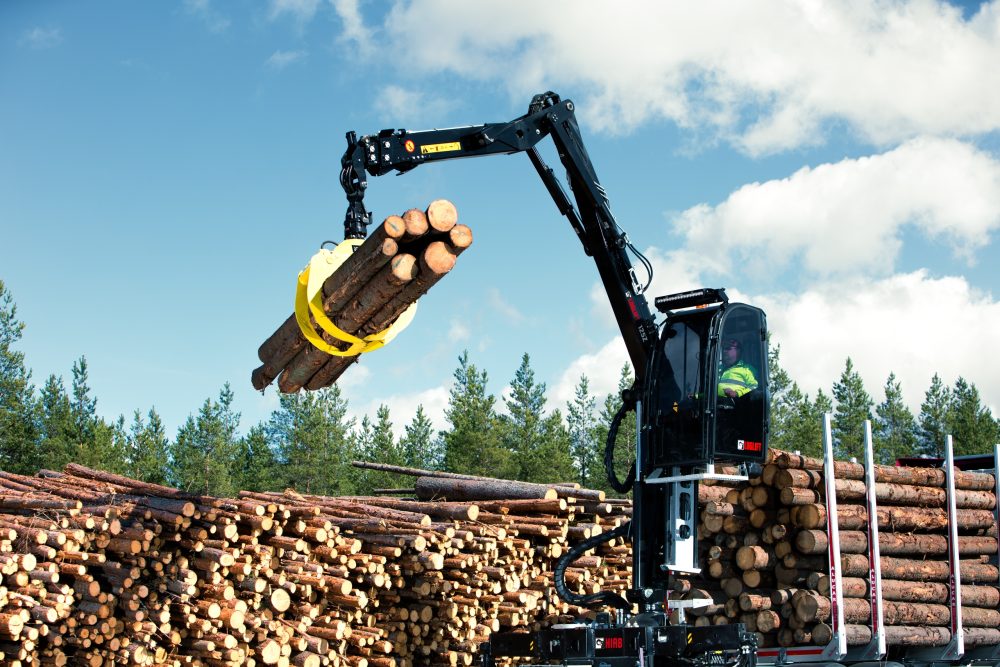

LOGLIFT 125Z forestry crane
The LOGLIFT 125Z is a new foldable forestry crane with the highest load capacity in its class, built for everyday work in the most demanding conditions at the lowest cost over its service life.
The new LOGLIFT 125Z is built to lift more and to withstand work in the most demanding conditions every day – for years, at the lowest cost over its entire service life. According to the manufacturer, it offers the highest load capacity in its class.
It is available in four versions, with a hydraulic outreach of 7.8 to 9.3 m. The three-point mounting bridge has minimal effect on the truck's driving characteristics, so driving stays smooth and comfortable, and the service life of both the truck and the crane is maximized.
- Hydraulic pilot control (HPC) – light, precise controls and smoother operation
- Wireless weighing scale – maximum loading without exceeding the permitted weight and unnecessary trips
- Double rack slewing with an oil-bath mechanism
- Hi-Cab cabin or Top Seat high seat – comfort and excellent visibility
- HPL protective link and HIAB nDurance corrosion protection
| Technical specifications | 125Z 78 | 125Z 80 | 125Z 89 | 125Z 93 |
|---|---|---|---|---|
| Load class (kNm) | 78 | 80 | 89 | 93 |
| Hydraulic outreach (m) | 7.8 | 8 | 8.9 | 9.3 |
| Crane weight (kg) | 2140 | 2175 | 2284 | 2311 |
Detailed load charts for each boom version are available on request.
