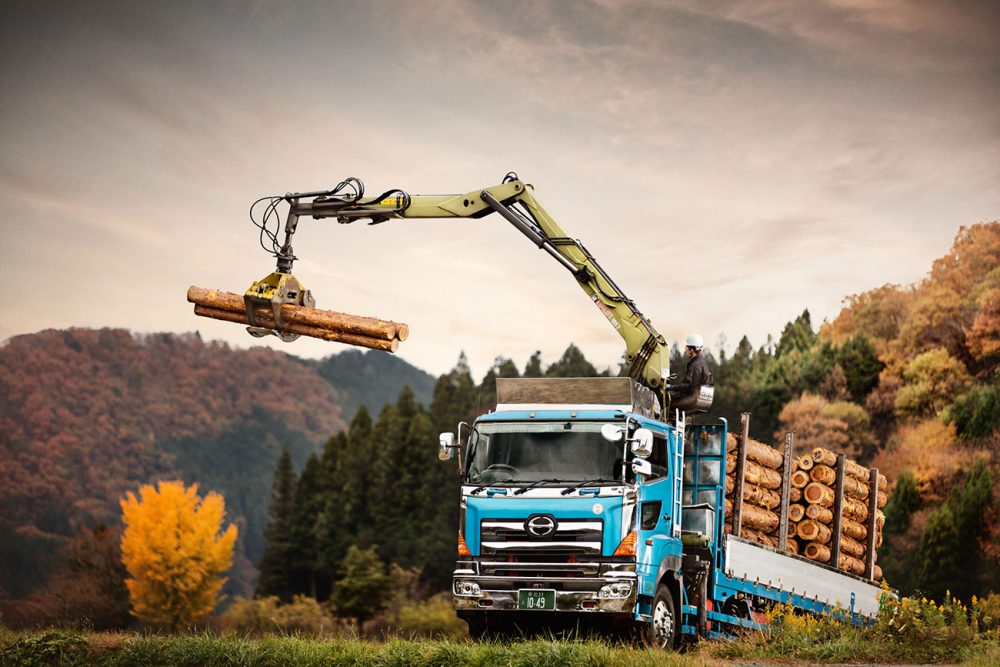

LOGLIFT 105Z forestry crane
The LOGLIFT 105Z is the most popular foldable forestry crane of the Z-series, 10 tm load class, available in versions with different outreaches – for smaller and larger timber trucks.
The LOGLIFT 105Z is the most popular crane in the foldable LOGLIFT Z-model series – and it didn't earn that popularity by chance. It is available in versions with different outreaches, so it suits both smaller and larger timber trucks. The load class is 10 tm.
Controls with fast, precise response and sufficient outreach ensure smooth loading. The foldable, lightweight structure takes away neither cargo space nor vehicle payload. The hydraulic outreach is 7.8 to 9 m, depending on the version.
- Hydraulic pilot control (HPC) – light controls and smoother crane operation
- Slewing mechanism in an oil bath – smooth slewing and less wear
- Swivel joints and HPL protective link – longer hydraulic hose life
- Three-point mounting bridge – minimal effect of the crane on truck handling
- HIAB nDurance protection – nano-ceramic layer and e-coating against corrosion
| Technical specifications | 105Z77 | 105Z87 | 105Z89 |
|---|---|---|---|
| Load class (kNm) | 105 | 100 | 100 |
| Load capacity (kg) | 2750 | 2600 | 2600 |
| Hydraulic outreach (m) | 7.8 | – | 9 |
| Crane weight (kg) | 1960 | – | 2070 |
Detailed load charts for each boom version are available on request.
