Box for two outrigger pads BOX Double

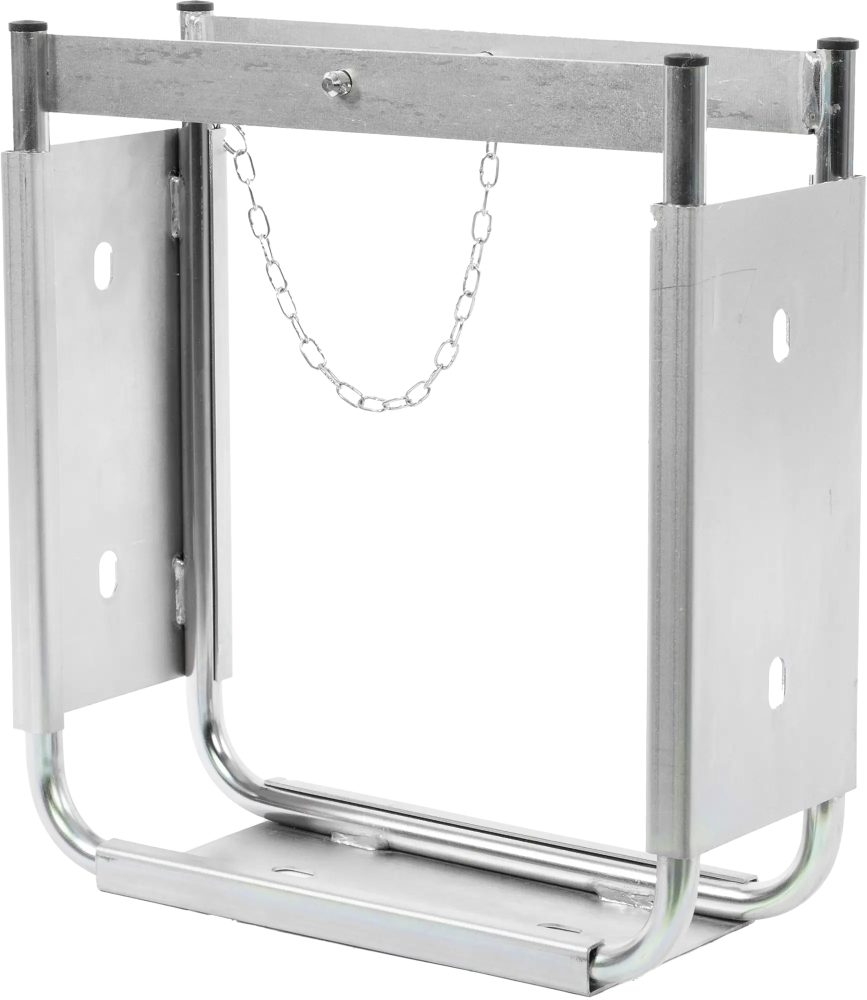

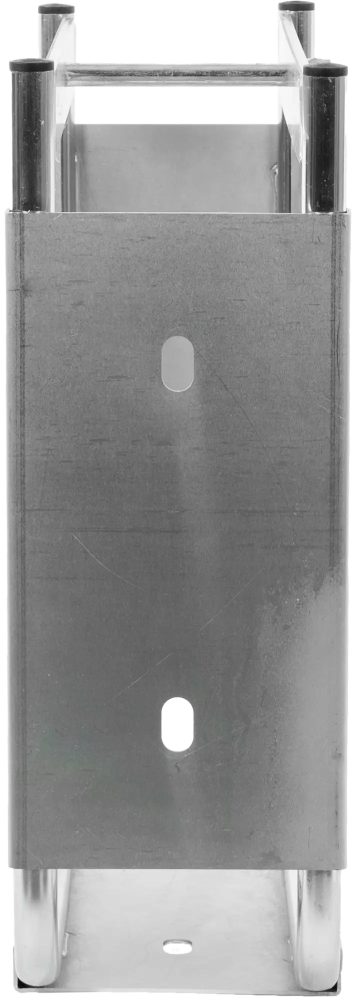

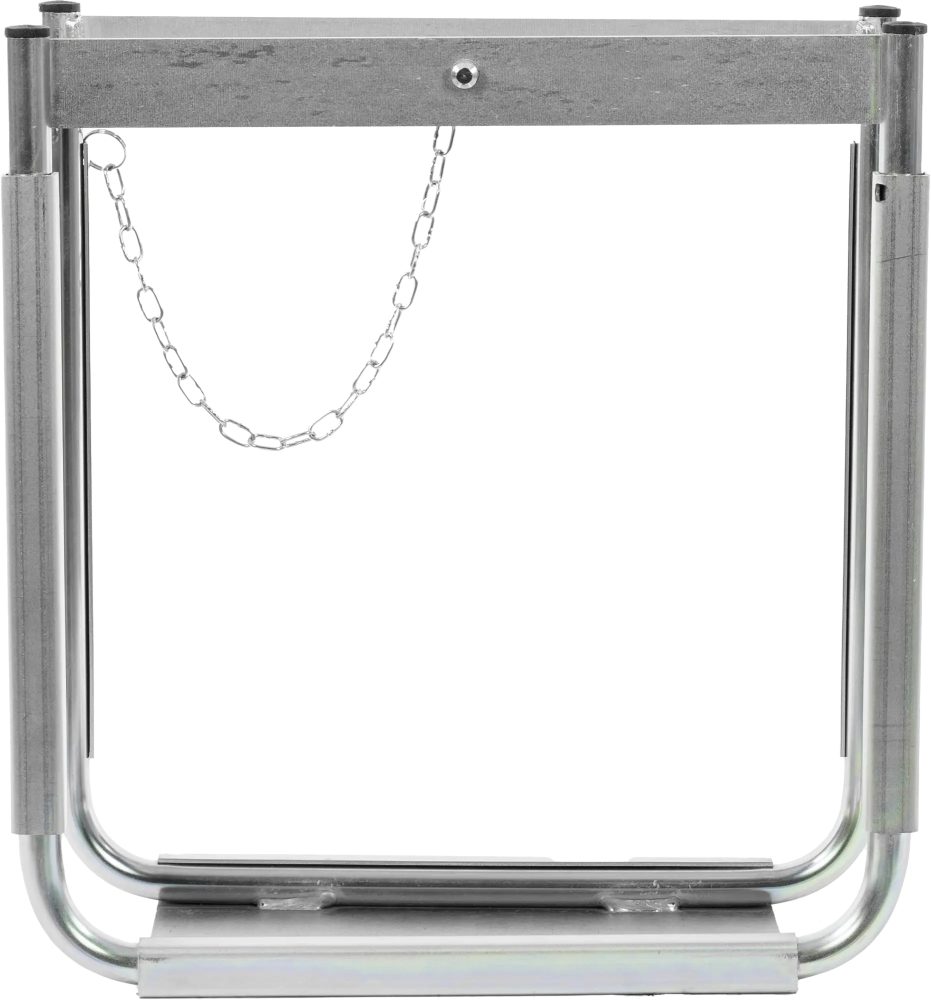

The FERRARI BOX Double is a galvanized steel box for safely storing two outrigger pads on the vehicle, resistant to corrosion.
The FERRARI BOX Double is an outrigger pad box designed for professional use when several pads need to be stored safely on the vehicle, with accessories neatly stowed. The double design keeps the pads at hand during setup, stabilization and operation.
It is made of galvanized steel with an iridescent finish, resistant to more than 500 hours of salt spray testing, which ensures long-lasting corrosion resistance. The new cage locking system can be fitted to all models, for better retention of the pads during transport and operation.
The table below shows all sizes with dimensions and weight. Send an inquiry and we will help you choose the version that suits your vehicle and outriggers.
- For two outrigger pads
- Galvanized steel, more than 500 hours of salt spray resistance
- Cage locking system as optional accessory
- 11 sizes, from BOX 20 to BOX 140
- Weight from 2.5 to 32 kg
| Model | Weight (kg) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|
| BOX 20 | 2,5 | 214 | 114 | 249 |
| BOX 25 | 3,3 | 264 | 114 | 299 |
| BOX 30 | 4 | 319 | 134 | 354 |
| BOX 40 | 6 | 414 | 154 | 439 |
| BOX 50 | 8 | 514 | 174 | 544 |
| BOX 60 | 10 | 614 | 174 | 654 |
| BOX 70 | 12,5 | 714 | 174 | 754 |
| BOX 80 | 15 | 814 | 174 | 854 |
| BOX 100 | 25 | 1026 | 214 | 1054 |
| BOX 120 | 28 | 1226 | 214 | 1254 |
| BOX 140 | 32 | 1426 | 134 | 1454 |
Detailed technical specifications for each version are available on request.
