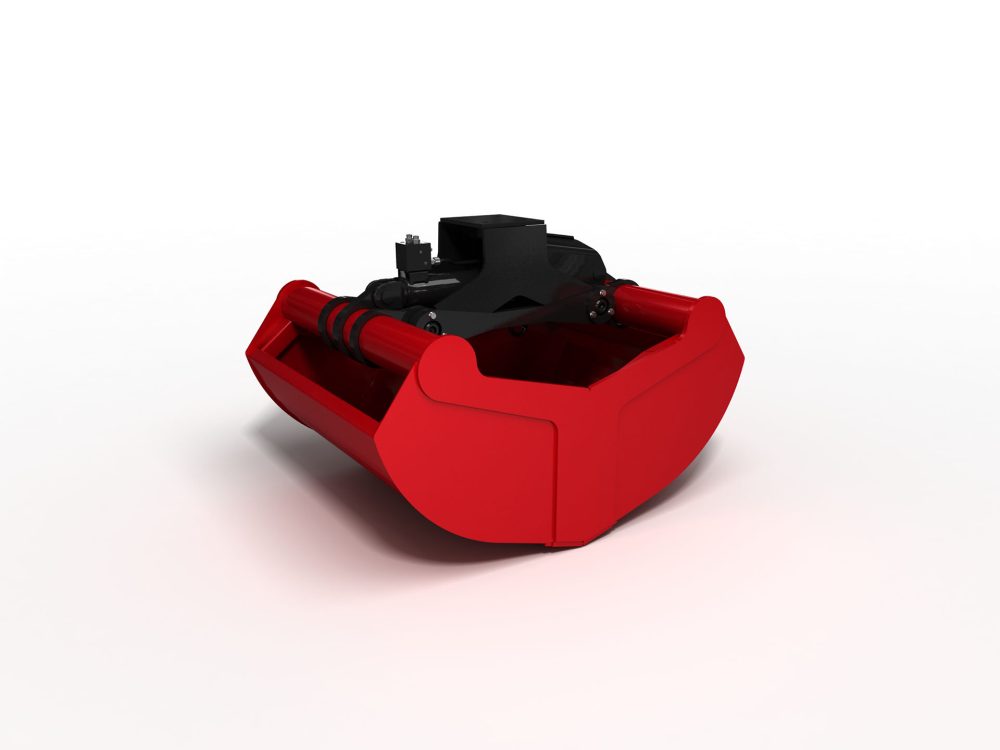

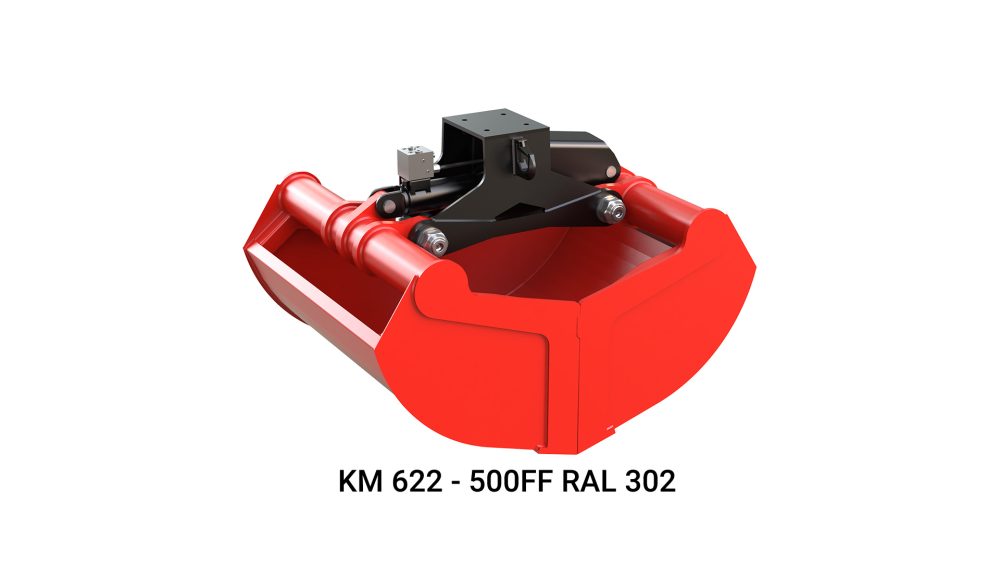

Clamshell grab for bulk materials KM 622
The HIAB KM 622 clamshell grab has an exceptionally narrow frame, so in addition to handling bulk materials it can also perform light digging work.
The HIAB KM 622 is a clamshell grab with an exceptionally narrow frame, which allows it to perform light digging work in addition to handling bulk materials. The closing force is 20 kN and the maximum opening is 1670 mm.
It is available in three versions, with volumes of 300, 400 and 500 l and widths of 640 to 1000 mm, with five or nine teeth. It can also be ordered as a set with the KM 04 S69-30 rotator, KM 203 01 hose set, KM 501S-4t short link and KM 502 adapter.
The weight is 315, 345 and 370 kg for the 300, 400 and 500 l versions. The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Narrow frame – also suitable for light digging work
- Volume from 300 to 500 l
- Closing force 20 kN
- Maximum opening 1670 mm
- Weight from 315 to 370 kg, depending on version
| Technical specifications | KM622-300 | KM622-400 | KM622-500 |
|---|---|---|---|
| Catalog number | 9854134 | 9854142 | 9854151 |
| Volume (l) | 300 | 400 | 500 |
| Closing force (kN) | 20 | 20 | 20 |
| Number of teeth | 5 | 9 | 9 |
| Max. opening (mm) | 1670 | 1670 | 1670 |
| Width (mm) | 640 | 800 | 1000 |
| Weight (kg) | 315 | 345 | 370 |
Detailed technical specifications for each version are available on request.
