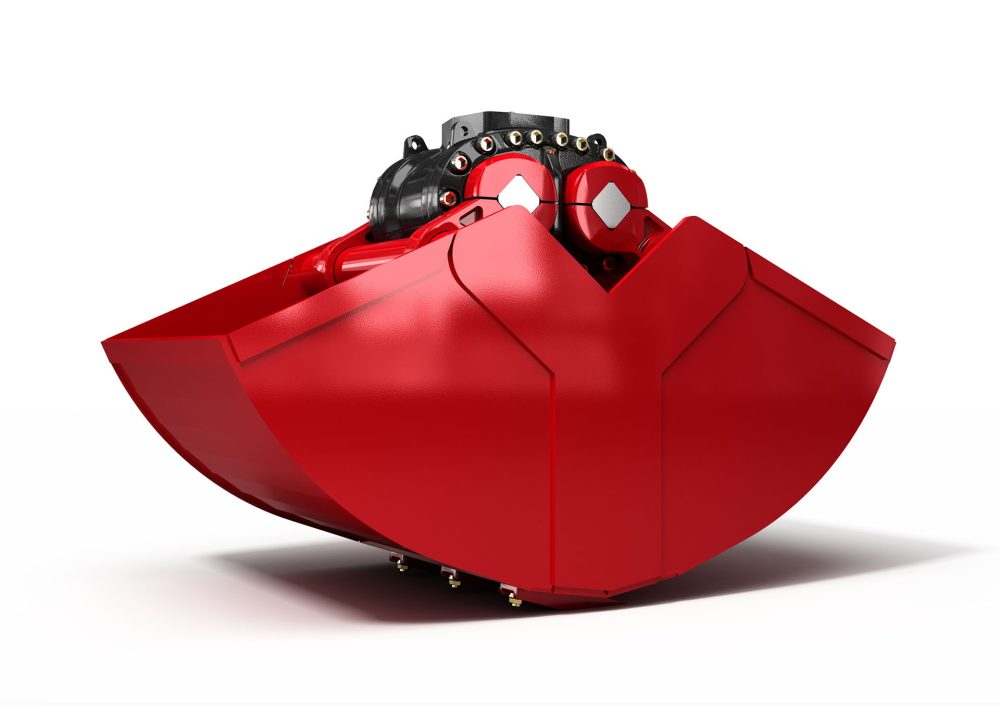

Clamshell grab for bulk materials KM 605 HPX
The HIAB KM 605 HPX clamshell grab with the heavy-duty HPX drive handles even the toughest tasks thanks to a high closing force of 34 kN.
The HIAB KM 605 HPX is a powerful clamshell grab with the heavy-duty HPX drive (HPXdrive Heavy Duty). Thanks to its high closing force of 34 kN, it handles demanding tasks and is ideal for both digging and handling bulk materials.
It is available in ten versions, with a volume of 200 to 550 l, a width of 400 to 1000 mm and a maximum opening of 1420 mm. It can also be ordered as a set with the KM 04 rotator, KM 203 01 hose set, KM 501L-4t long link, KM 502 adapter, HPX drive HD and teeth.
The table below shows the range of technical specifications for all 10 versions. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Heavy-duty HPX drive (Heavy Duty)
- Closing force 34 kN
- Volume from 200 to 550 l
- Maximum opening 1420 mm, 4 to 8 teeth
- Weight from 335 to 460 kg, depending on version
| Technical specifications | Value |
|---|---|
| Volume (l) | 200 – 550 |
| Closing force (kN) | 34 |
| Number of teeth | 4 – 8 |
| Max. opening (mm) | 1420 |
| Height (mm) | 1035 – 1090 |
| Width (mm) | 400 – 1000 |
| Weight (kg) | 335 – 460 |
| Number of versions | 10 |
| Available versions | KM 605 HPX 200 WF, KM 605 HPX 250 WF, KM 605 HPX 350 WF, KM 605 HPX 450 WF, KM 605 HPX 550 WF, KM 605 HPX 200 WS, KM 605 HPX 250 WS, KM 605 HPX 350 WS, KM 605 HPX 450 WS, KM 605 HPX 550 WS |
Detailed technical specifications for each version are available on request.
