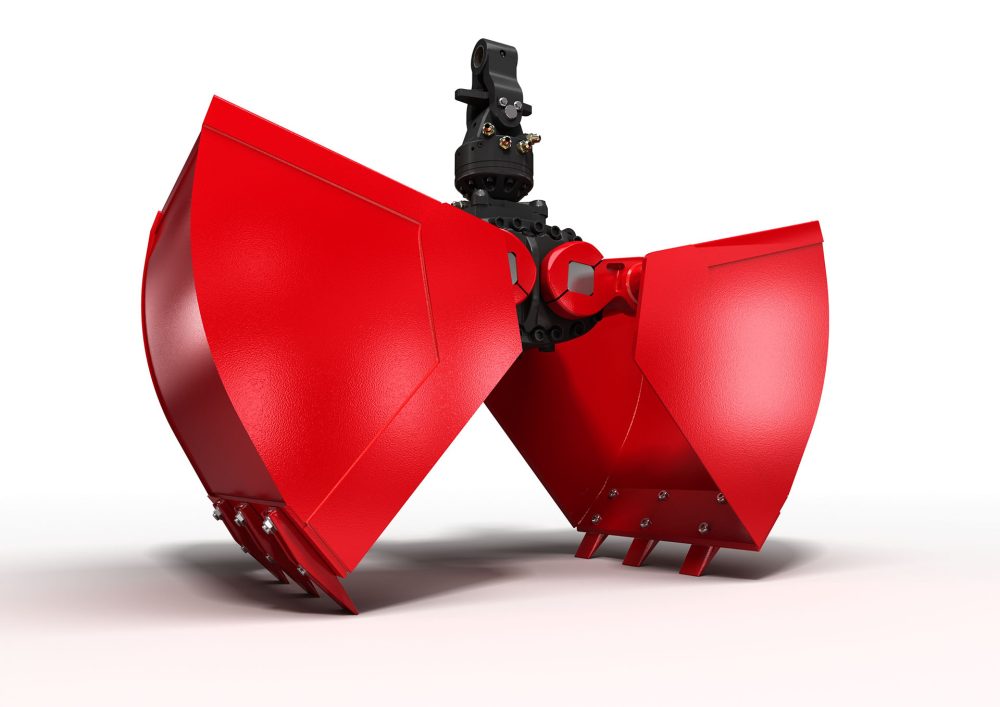

Clamshell grab for bulk materials KM 604 HPX
The HIAB KM 604 HPX clamshell grab with the standard HPX drive is a versatile grab for digging and handling bulk materials in everyday work.
The HIAB KM 604 HPX is a versatile clamshell grab with the standard HPX drive (HPXdrive Standard), designed for digging and handling bulk materials. It is ideal for everyday routine work with a loader crane.
It is available in 12 versions, with a volume of 200 to 450 l, a width of 400 to 800 mm and a maximum opening of 1390 mm. It can also be ordered as a set with the KM 04 rotator, KM 203-01 hose set, KM 501L-4t long link, KM 502 adapter, HPX drive and teeth.
The grab height ranges from 1020 to 1075 mm. The table below shows the range of technical specifications for all 12 versions. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Standard HPX drive
- Volume from 200 to 450 l
- Load capacity 3000 kg and closing force 19 kN
- Maximum opening 1390 mm, 4 to 6 teeth
- Weight from 290 to 345 kg, depending on version
| Technical specifications | Value |
|---|---|
| Volume (l) | 200 – 450 |
| Closing force (kN) | 19 |
| Number of teeth | 4 – 6 |
| Max. opening (mm) | 1390 |
| Width (mm) | 400 – 800 |
| Weight (kg) | 290 – 345 |
| Number of versions | 12 |

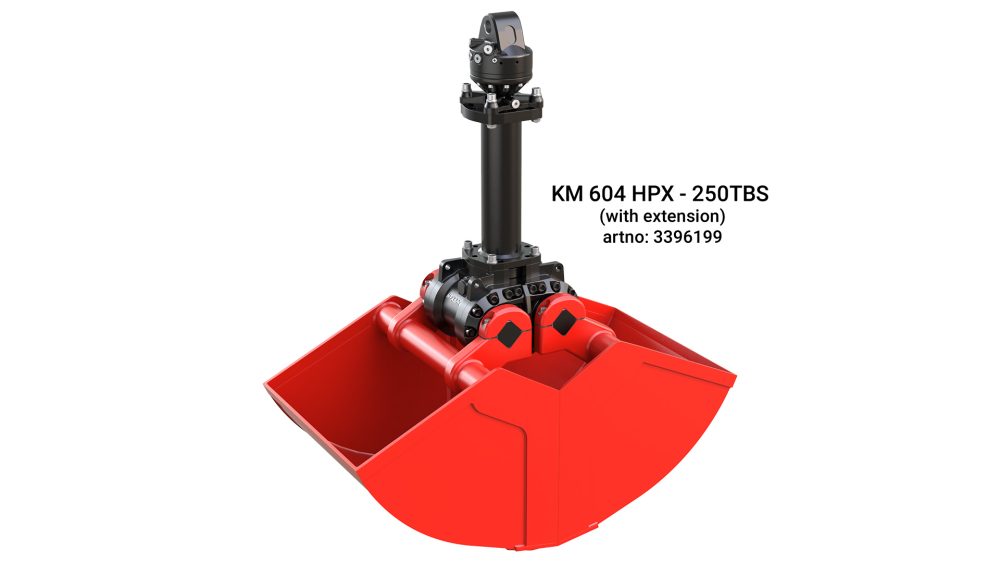

| Available versions | KM 604 HPX 200 WS, KM 604 HPX 250 WS, KM 604 HPX 325 WS, KM 604 HPX 350 WS, KM 604 HPX 450 WS, KM 604 HPX 200 WF, KM 604 HPX 250 WF, KM 604 HPX 325 WF, KM 604 HPX 350 WF, KM 604 HPX 450 WF, KM 604HPX – 250ZP, KM 604 HPX – 250 TBS |
Detailed technical specifications for each version are available on request.
