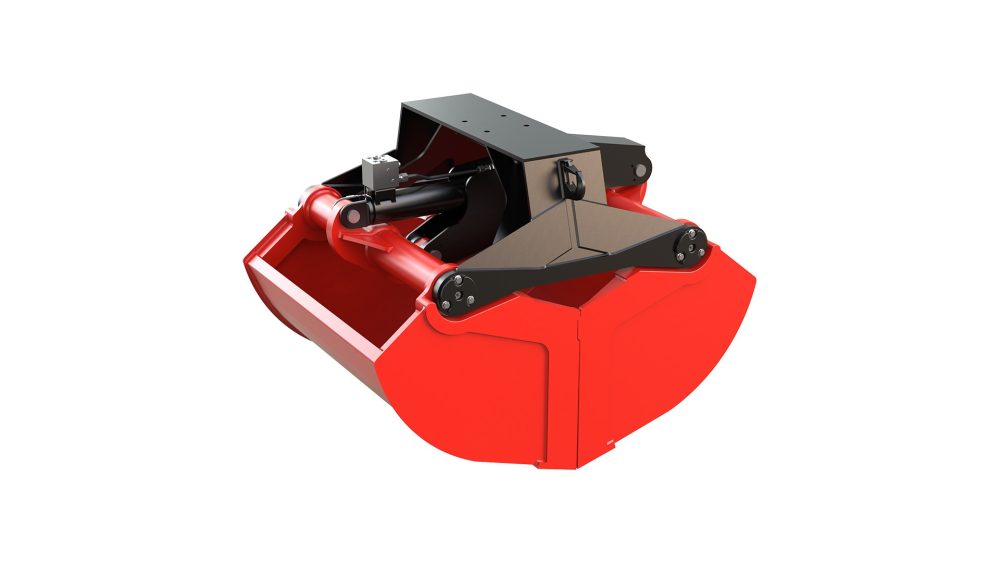

Clamshell grab for bulk materials KM 602

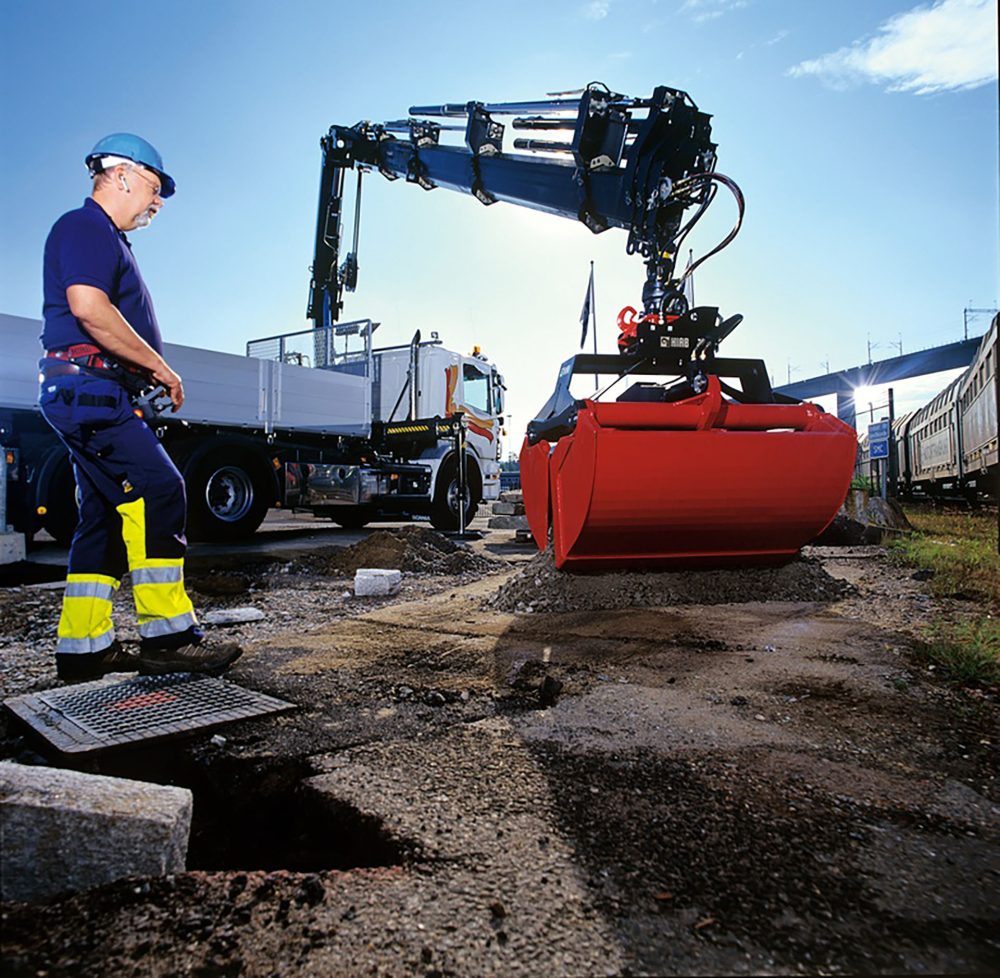

The HIAB KM 602 clamshell grab is a robust grab for bulk material such as sand, gravel and soil, with a volume of 300 to 1000 l.
The HIAB KM 602 is a robust clamshell grab for handling bulk materials such as sand, gravel and soil. The closing force is 23 to 28 kN and the maximum opening is 1830 to 2190 mm, depending on the version.
It is available in five versions, with a volume of 300 to 1000 l and a width of 500 to 1200 mm. It can also be ordered as a set with the KM 04 S69-30 rotator, KM 203 01 hose set, KM 501S-4t short link and KM 502 adapter.
The largest version, with a volume of 1000 l, has a width of 1200 mm and a maximum opening of 2190 mm. The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Volume from 300 to 1000 l
- Closing force from 23 to 28 kN
- Maximum opening up to 2190 mm
- Five or nine teeth, width from 500 to 1200 mm
- Weight from 360 to 585 kg, depending on version
| Technical specifications | KM602-300 | KM602-400 | KM602-500 | KM602-650 | KM602-1000 |
|---|---|---|---|---|---|
| Catalog number | 9854053 | 9854061 | 9854070 | 9854088 | 9854096 |
| Volume (l) | 300 | 400 | 500 | 650 | 1000 |
| Closing force (kN) | 28 | 28 | 28 | 28 | 23 |
| Number of teeth | 5 | 9 | 9 | 9 | 9 |
| Max. opening (mm) | 1830 | 1830 | 1830 | 1830 | 2190 |
| Width (mm) | 500 | 800 | 1000 | 1200 | 1200 |
| Weight (kg) | 360 | 425 | 465 | 515 | 585 |
Detailed technical specifications for each version are available on request.
