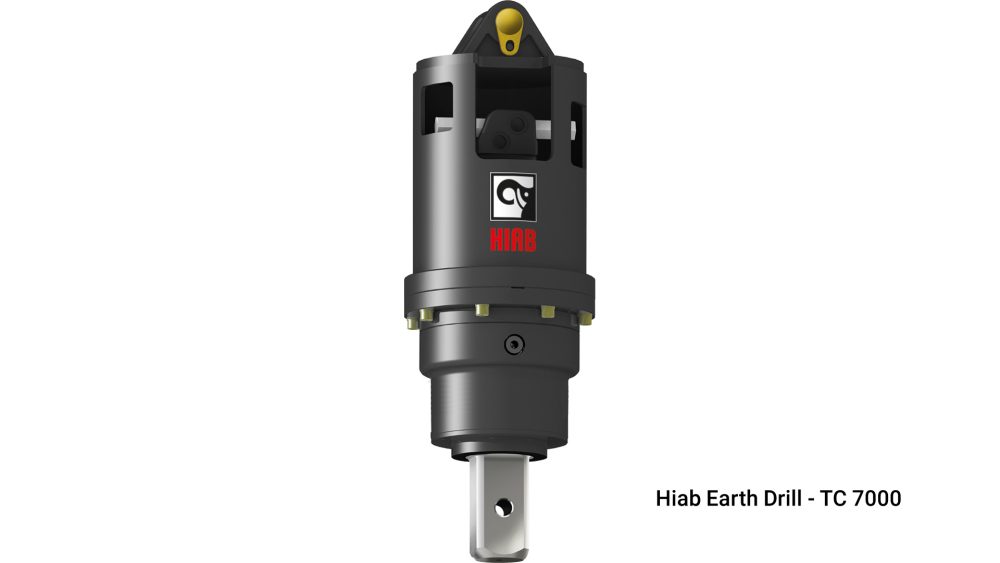

Hydraulic motor for TC earth drill
The HIAB TC is a hydraulic drive (hydraulic motor) for an earth drill, with a torque of 3100 to 6800 Nm, for drilling holes in the ground.
The HIAB TC (Earth Drill) is a hydraulic drive for an earth drill that attaches to a loader crane and powers an auger for drilling holes in the ground. It is available in three versions, with a torque of 3100, 5500 and 6800 Nm.
The 3000 version has a round auger connection, while the stronger 5500 and 7000 versions have a square one. The drive weighs from 73 to 110 kg and is 244 to 269 mm wide. With a suitable auger – for example from the HIAB S4 and S5 series – it forms a complete earth drill.
The strongest version develops a torque of 6800 Nm at a weight of only 110 kg. The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Torque from 3100 to 6800 Nm
- Three versions: 3000, 5500 and 7000
- Round or square auger connection
- Weight from 73 to 110 kg
- For augers with a round or square connection
| Technical specifications | 3000 | 5500 | 7000 |
|---|---|---|---|
| Catalog number | 3394445 | 3394446 | 3394447 |
| Auger connection | round | square | square |
| Torque (Nm) | 3100 | 5500 | 6800 |
| Width (mm) | 244 | 269 | 269 |
| Weight (kg) | 73 | 108 | 110 |
Detailed technical specifications for each version are available on request.
