HIAB R-HiPro 112e loader cranes

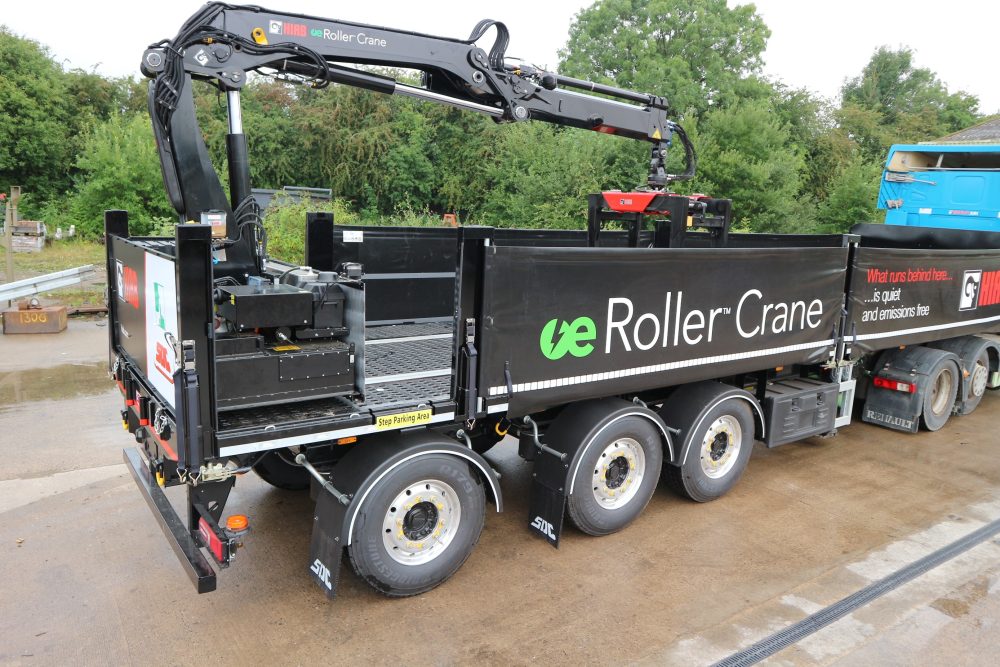

The HIAB R-HiPro 112e is a loader crane, 10.7 tm load class, mounted on a rail system on the truck bed – it travels along the vehicle to where it is needed.
The HIAB R-HiPro 112e combines the most advanced HIAB loader crane platform with a roller system on the truck's load platform. The crane travels along the rails and is positioned exactly where it is needed at any given moment, which speeds up loading and unloading and makes it easier to handle cargo spread across the entire platform.
Operated remotely via the HiPro system – HIAB's most advanced remote control system, enabling fast and precise operation with multiple simultaneous movements. The crane is CE certified.
- Roller system on the load platform – the crane moves along rails and is positioned wherever it is needed
- HiPro remote control – high oil flow and smooth simultaneous movements (PFD)
- Automatic speed control (ASC) – up to 10% higher capacity, without stopping work
- Hydraulic outreach up to 5.7 m, load capacity up to 1,920 kg and an own weight of 1,966 kg
| Technical specifications | E-1 |
|---|---|
| Control system | HiPro |
| Load class (kNm) | 98 |
| Load capacity (kg) | 1920 |
| Outreach – hydraulic extensions (m) | 5.7 |
| Crane weight (kg) | 1966 |
Detailed load charts for each boom version are available on request.
