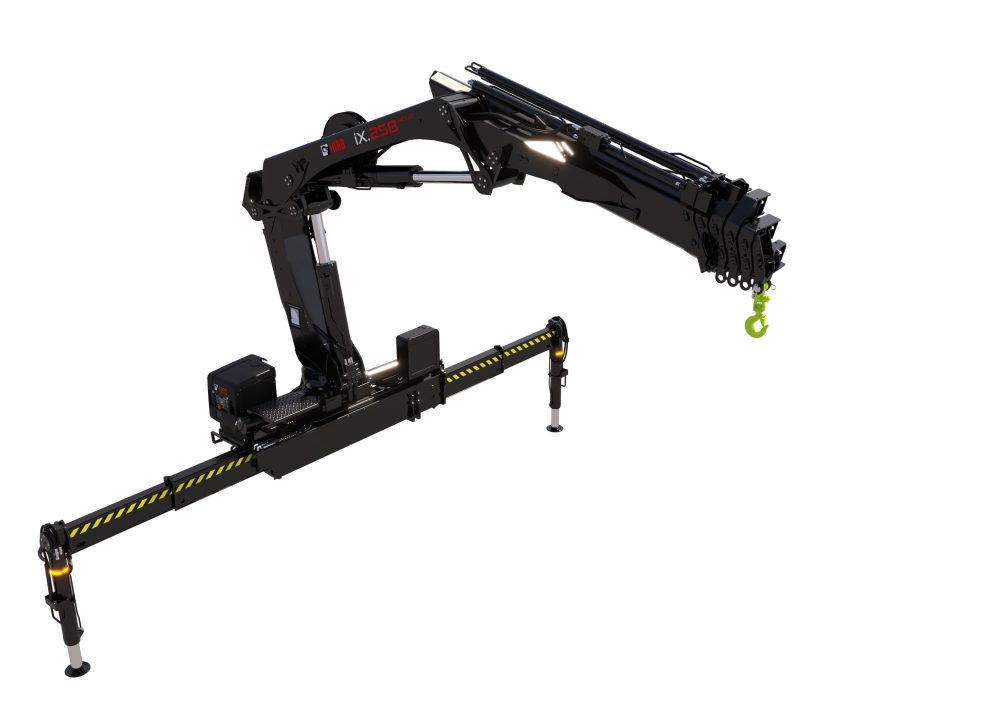

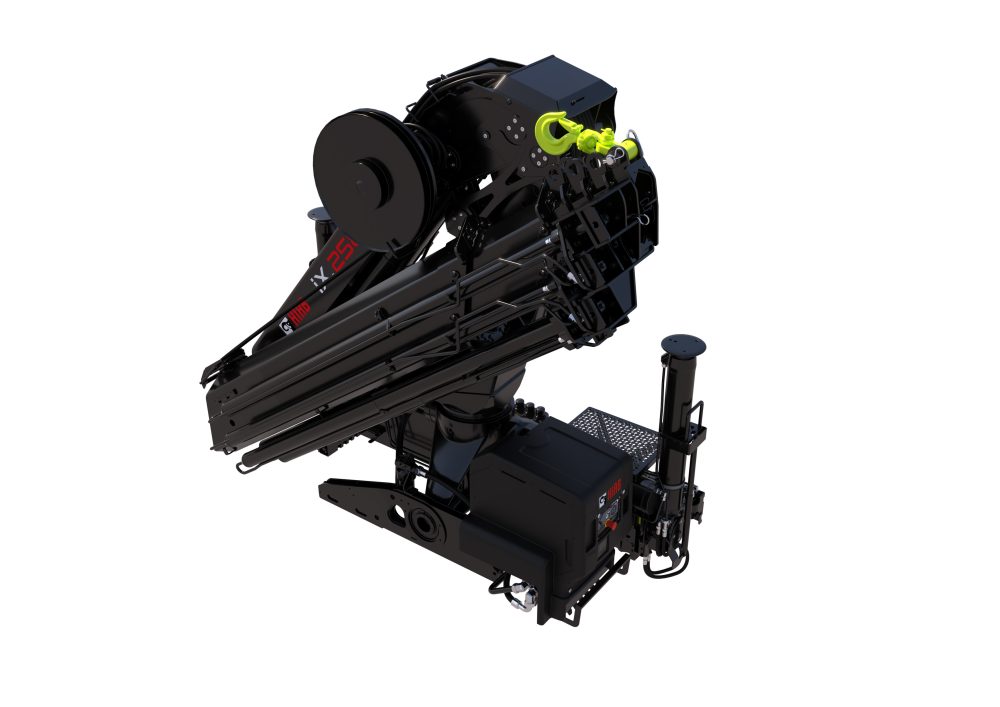

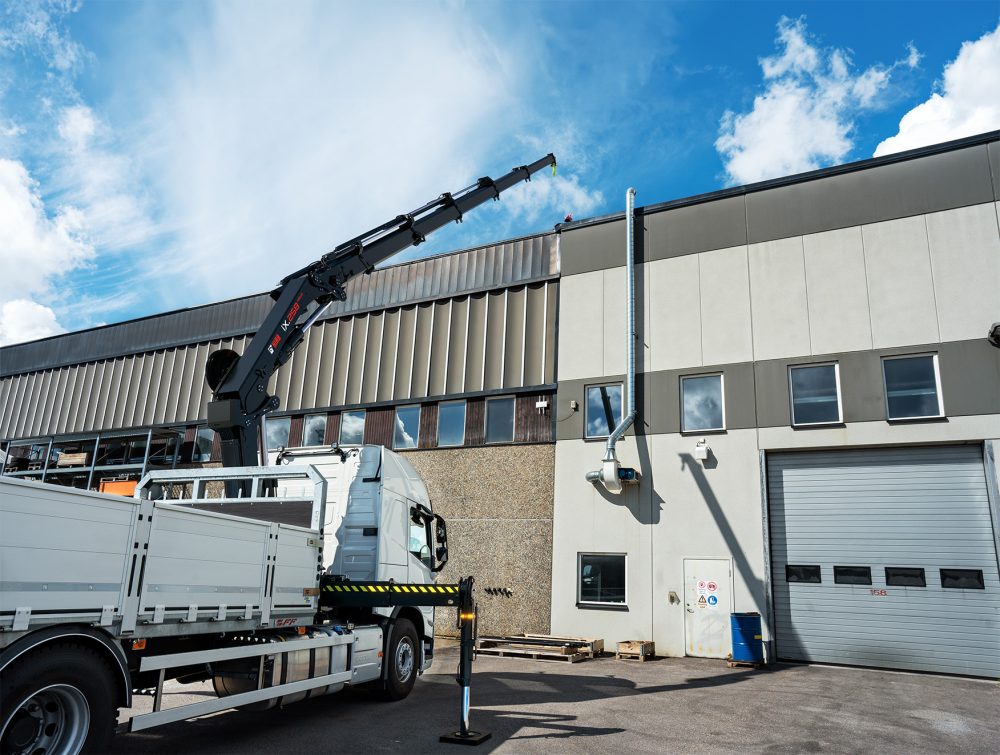

HIAB iX.258 HiDuo loader cranes

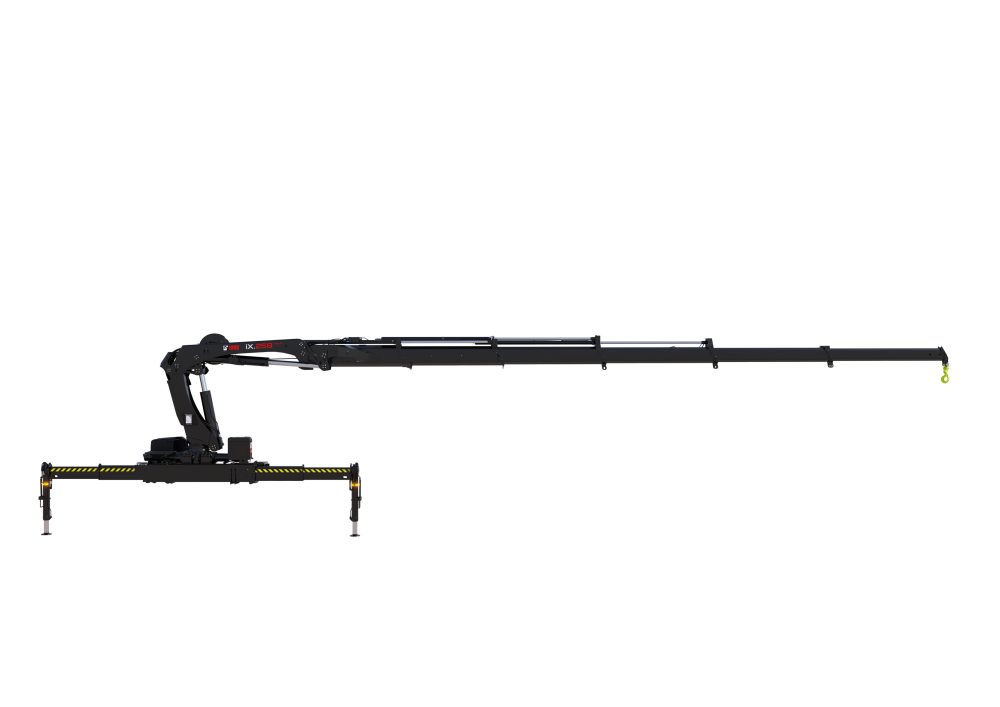

The HIAB iX.258 HiDuo is a loader crane with a 23.1 tm load class and a hydraulic outreach of up to 21 m (21.7 m with a manual extension) – the latest evolution of the iX.HiDuo series.
The HIAB iX.258 HiDuo is the latest evolution of the iX.HiDuo series. It combines advanced engine management functions with an optional variable-flow pump, setting a new standard of efficiency in its segment.
With a load capacity of up to 23.1 tm and a hydraulic outreach of up to 21 m (21.7 m with a manual extension), it is built to lift more than you would expect. The advanced steel structure is both strong and light, which makes work more efficient. CE certified; a version for non-EU markets is also available.
The ADC function delivers up to 10% higher load capacity with a suspended load, and HIAB nDurance protection guards the crane against corrosion.
- HiDuo remote control – fast response and simultaneous execution of multiple movements
- Automatic speed control (ASC) increases capacity without operator intervention
- New-generation SPACEevo control system
- Hoses, pipes and cables routed through the inside of the booms – protected from damage
- XSDrive remote control as standard, CombiDrive 4 as an option
| Technical specifications | Value |
|---|---|
| Control system | HiDuo |
| Load class (kNm) | 193 – 226.1 |
| Outreach – hydraulic extensions (m) | 8 – 20.9 |
| Outreach – manual extensions (m) | 10.1 – 21.7 |
| Crane weight (kg) | 2871 – 3870 |
| Number of boom versions | 9 |
| Available boom versions | E-4, -5, -6, -7, -8 · EP-2, -3, -4, -5 |
Detailed load charts for each boom version are available on request.
