HIAB iX.158 HiDuo loader cranes
The HIAB iX.158 HiDuo is a new-generation loader crane, 15.5 tm load class – lighter and stronger than its predecessor, ideal for loading and unloading construction materials.

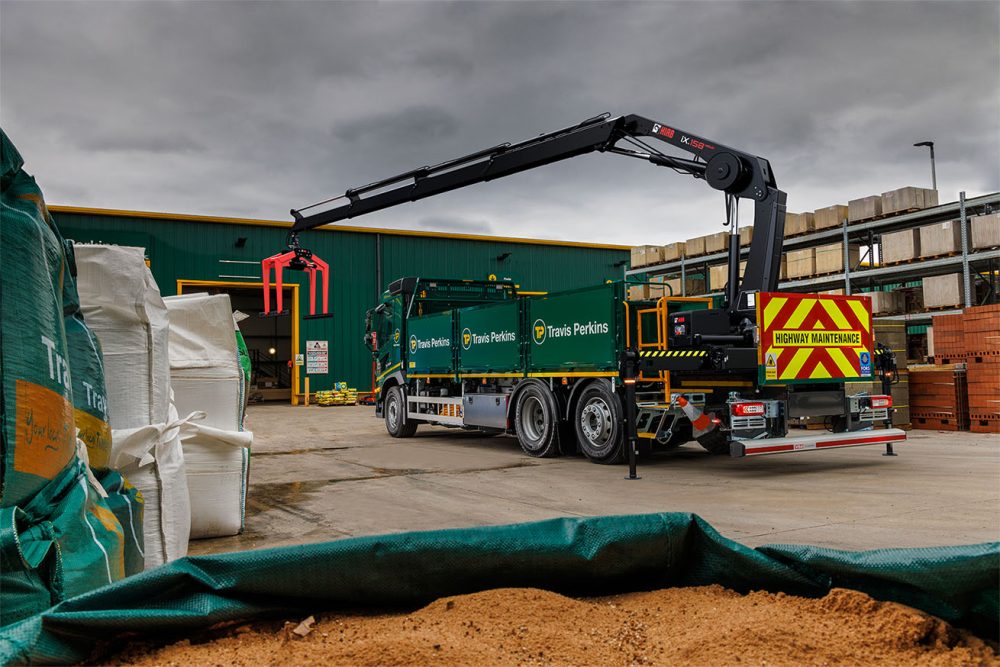

The HIAB iX.158 HiDuo is a new-generation loader crane – both lighter and stronger than its predecessor. It is ideal for B configurations, where the vehicle's maximum payload is critical: for loading and unloading, construction materials, bricks and blocks.

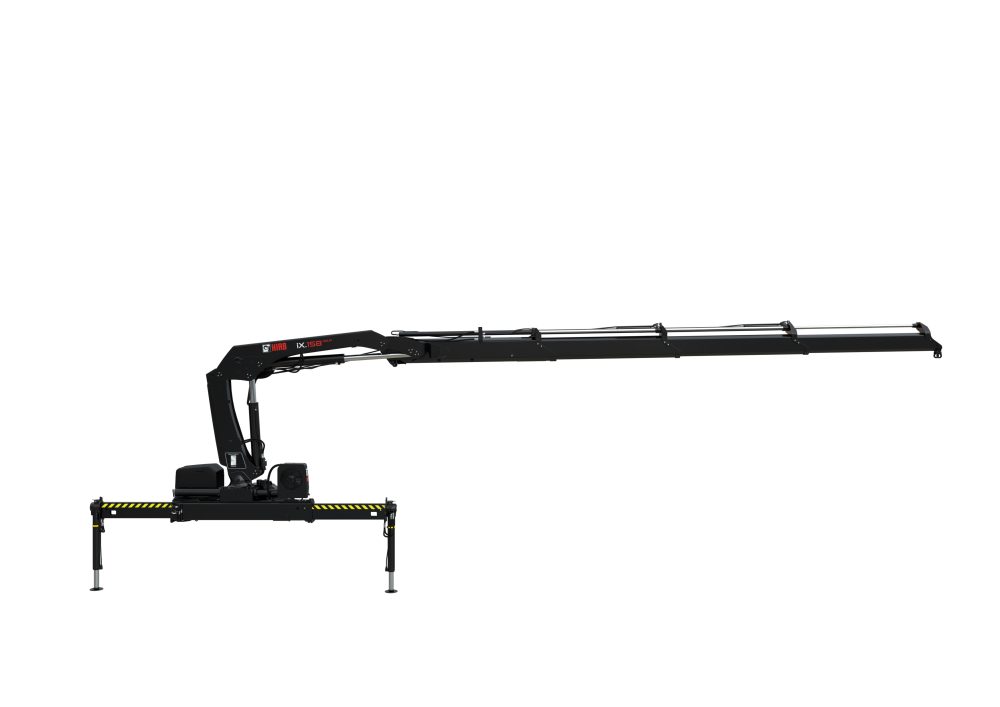

It is built on the same steel structure as the more advanced iX.162 HiPro model, so it makes no compromises in quality and durability. The hydraulic outreach is up to 11 m in the B configuration (up to three extensions) and up to 15.1 m in the D and E configurations (up to five extensions), or 13.2 and 17.2 m with a manual extension. CE certified; a version for non-EU markets is also available.
- HiDuo remote control – fast response and simultaneous execution of multiple movements
- Automatic speed control (ASC) increases capacity without operator intervention
- New-generation SPACEevo control system
- Hoses, pipes and cables routed through the inside of the booms – protected from damage
- XSDrive remote control as standard, CombiDrive 4 as an option
| Technical specifications | Value |
|---|---|
| Control system | HiDuo |
| Load class (kNm) | 133.4 – 157.1 |
| Outreach – hydraulic extensions (m) | 6.1 – 15 |
| Outreach – manual extensions (m) | 8.1 – 17.3 |
| Crane weight (kg) | 1625 – 2245 |
| Number of boom versions | 27 |
| Available boom versions | B-1, -2, -3 · BS-1, -2, -3 · BSS-2 · D-1, -2, -3, -4, -5 · DS-1, -2, -3, -4, -5 · E-1, -2, -3, -4, -5 · ES-1, -2, -3, -4, -5 |
Detailed load charts for each boom version are available on request.
