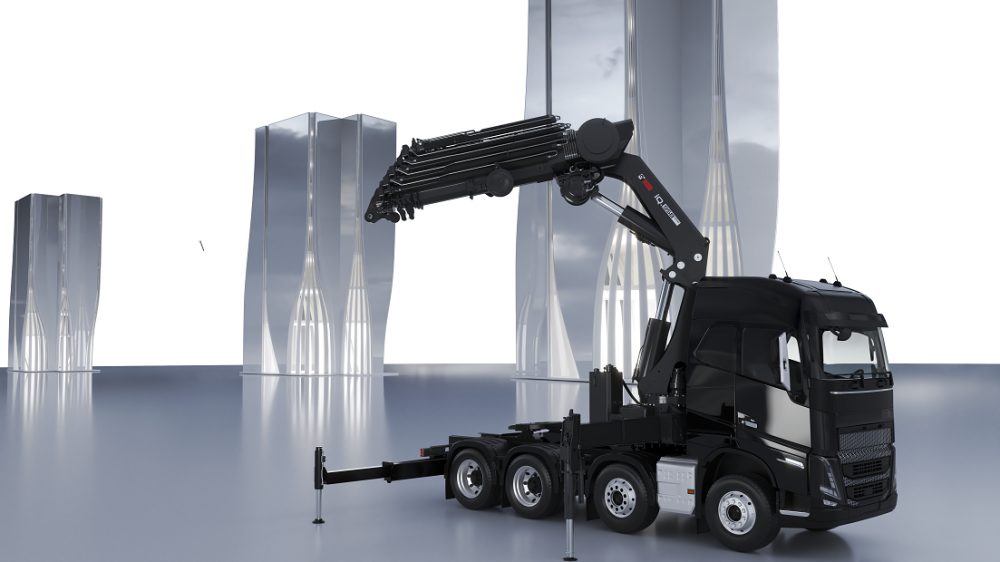

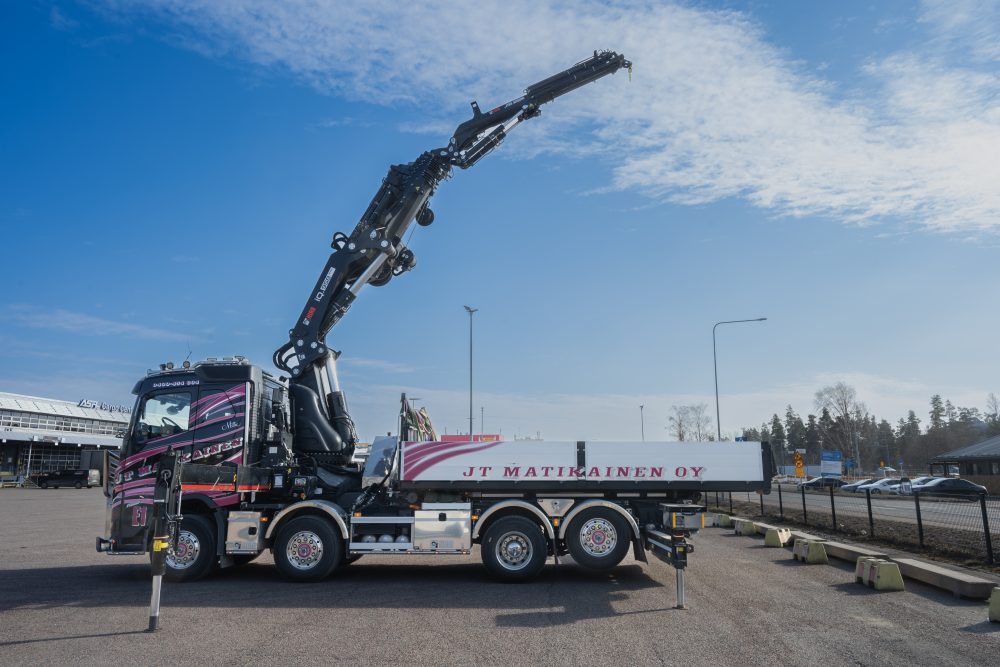

HIAB iQ.958 HiPro loader cranes
The HIAB iQ.958 HiPro is a versatile heavy loader crane in the 90 tm class, with a vertical outreach of up to 38.5 m and a horizontal outreach of up to 34.4 m – exceptional control even at long outreach.
The HIAB iQ.958 HiPro is a versatile crane that provides exceptional control even at long outreach, with advanced technology in a compact design that maximizes the vehicle's payload.
On construction sites, long outreach is often critical for heavy loads. In the E-8 configuration with the JIB 6 extension, the crane achieves exceptional lifting results while the installation space stays under 2 m.
With the widest stabilizer span in the HIAB range – up to 9 m – it provides superior stability, and the compact rear stabilizers reduce overall weight and extend the working zone.
- V12-Power boom and JIB – high lifting power with low weight and compact dimensions
- HiPro remote control – high oil flow and smooth simultaneous movements (PFD)
- VSL PLUS – maximum load capacity according to stabilizer position and vehicle weight
- Automatic ASC and ADC functions – up to 10% higher capacity, without stopping work
- Load stability system (LSS-V) – smooth operation without sudden vertical movements
| Technical specifications | E-10 | E-8 | E-9 |
|---|---|---|---|
| Control system | HiPro | HiPro | HiPro |
| Load class (kNm) | 742.5 | 754 | 749 |
| Outreach – hydraulic extensions (m) | 23.9 | 19.5 | 21.8 |
| Crane weight (kg) | 9189 | 8803 | 9014 |
| Max. working incline (°) | 7 | 7 | 7 |
| Max. oil flow (l/min) | 140 | 140 | 140 |
| Oil tank capacity (l) | 400 | 400 | 400 |
Detailed load charts for each boom version are available on request.
