HIAB iQ.708 HiPro loader cranes

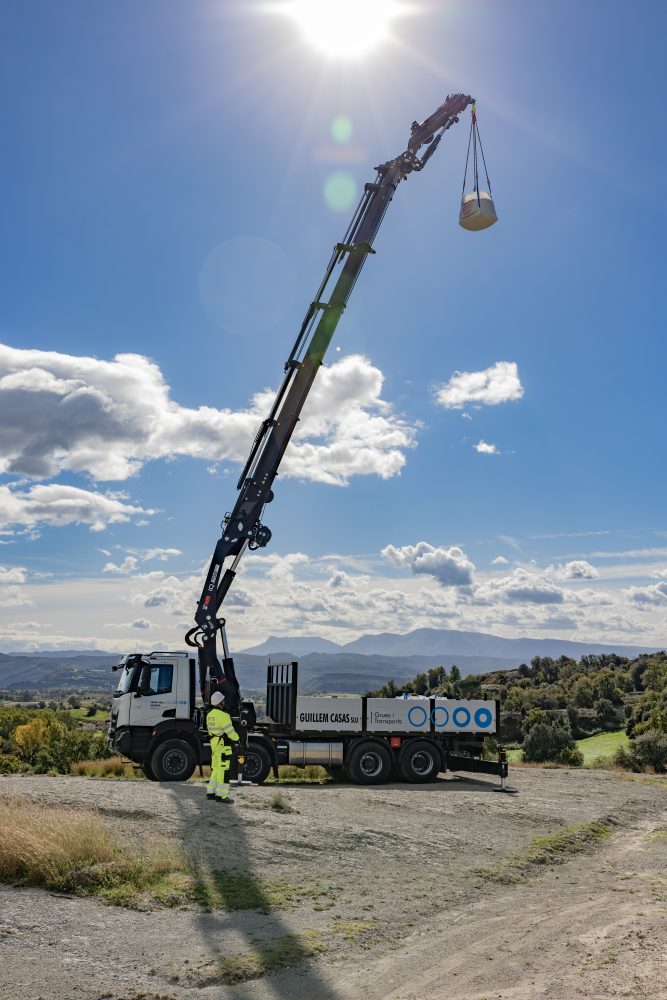

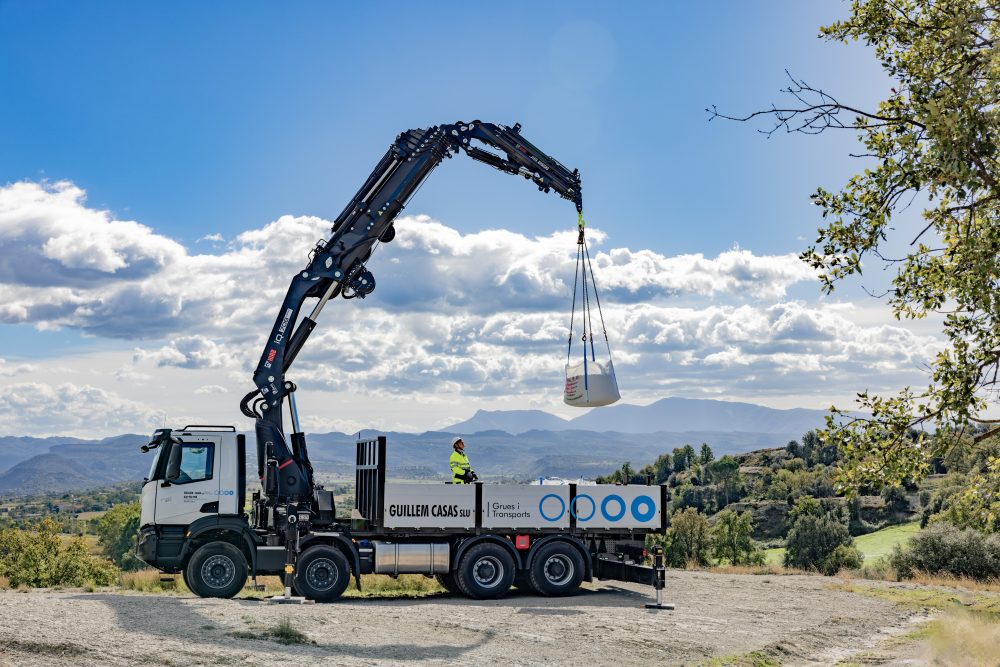

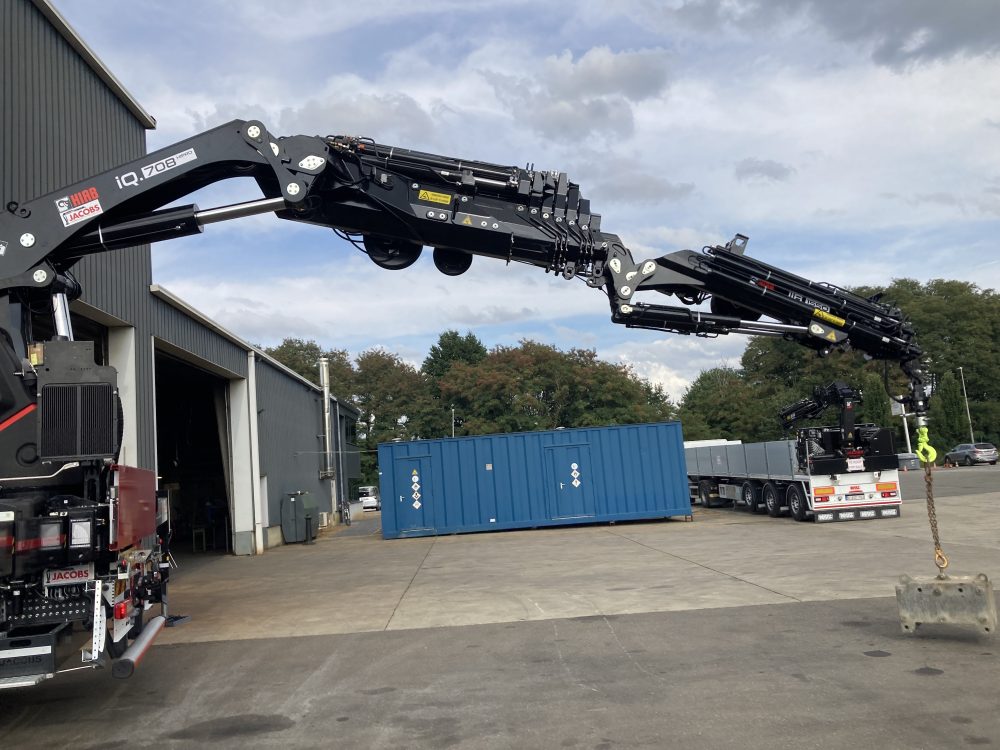

The HIAB iQ.708 HiPro is a heavy loader crane in the 60–70 tm class, with a load capacity of up to 22,000 kg, a vertical outreach of up to 39 m and a horizontal outreach of up to 35 m.
The HIAB iQ.708 HiPro is a reliable working partner, designed to deliver optimal flexibility and outstanding performance in a lightweight package – not only for today's needs, but also for the future.
The V12-Power boom offers an outstanding power-to-weight ratio with a compact design that leaves more room for cargo, and thanks to its dimensions the crane can be installed on a wider range of trucks.
At the heart of the crane is the SPACEevo control system, which together with the Olsbergs V200 control valve and the CombiDrive 4 remote control forms a complete HIAB platform, perfectly matched to work together.
- V12-Power boom and JIB – high lifting power with low weight and compact dimensions
- VSL PLUS – maximum load capacity according to stabilizer position and vehicle weight
- Automatic start/stop and truck engine speed adjustment via CombiDrive 4
- Automatic ASC and ADC functions – up to 10% higher capacity, without stopping work
- Load stability system (LSS-H) – smooth operation without sudden horizontal movements
| Technical specifications | E-9 | E-8 | E-8 + JIB |
|---|---|---|---|
| Control system | HiPro | HiPro | HiPro |
| Load class (kNm) | 555.3 | 559.2 | 559.2 |
| Outreach – hydraulic extensions (m) | 23 | 20.5 | 33.2 |
| Outreach – manual extensions (m) | 25.4 | – | 35.1 |
| Crane weight (kg) | 7327 | 7101 | 7623 |
| Max. oil flow (l/min) | 140 | 140 | 140 |
Detailed load charts for each boom version are available on request.
