Log and branch grab KM 632 HPX

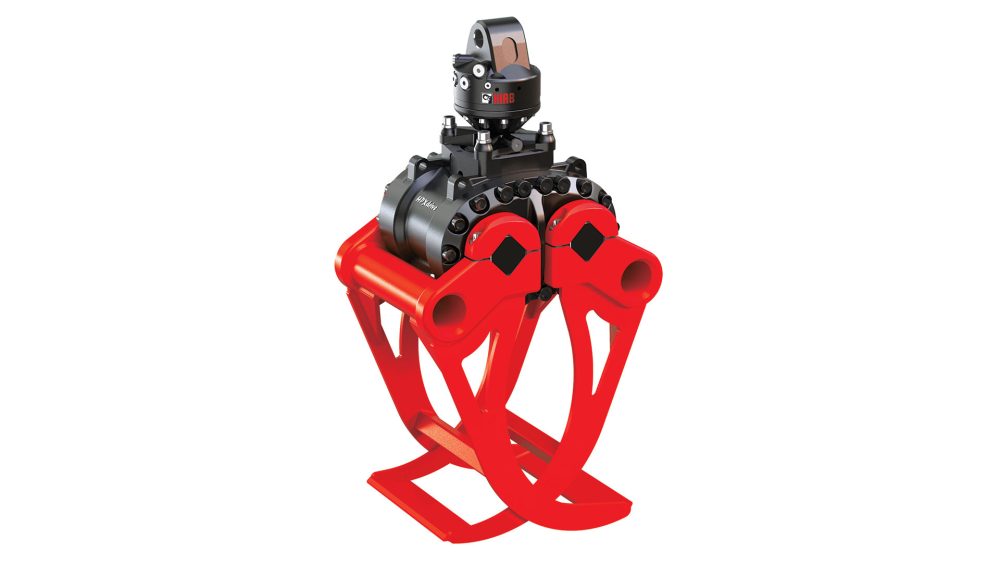

The HIAB KM 632 HPX is a grab for short logs, brush and branches with the standard HPX drive, with a load capacity of 1000 kg.
The HIAB KM 632 HPX is a grab with the standard HPX drive, designed for loading short logs, brush, branches and similar material. The load capacity is 1000 kg and the closing force is 18 kN.
A check valve maintains constant pressure even in the event of an unexpected pressure drop, and HPX technology guarantees a reliable connection with low maintenance. It can also be ordered as a set with the KM 04 rotator, KM 501 (4500) upper suspension, a pressure relief valve and a check valve.
The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Standard HPX drive
- Load capacity 1000 kg and closing force 18 kN
- Grip area 0.2 m², arm span 1220 mm
- Width 400 mm, weight from 210 to 215 kg
- Check valve for constant pressure
| Technical specifications | KM 632 HPX 0.16 WF | KM 632 HPX 0.16 WS |
|---|---|---|
| Catalog number | 3382117 | 3382125 |
| Grip area (m²) | 0.2 | 0.2 |
| Load capacity (kg) | 1000 | 1000 |
| Closing force (kN) | 18 | 18 |
| Arm span (mm) | 1220 | 1220 |
| Height (mm) | 1250 | 1340 |
| Length (mm) | 550 | 550 |
| Width (mm) | 400 | 400 |
| Weight (kg) | 210 | 215 |
Detailed technical specifications for each version are available on request.
