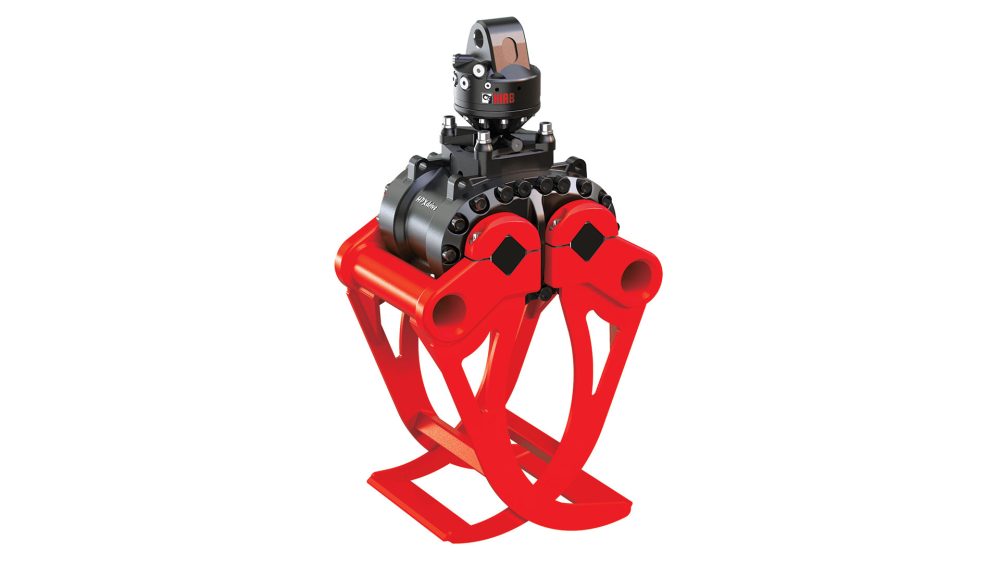

Log and branch grab KM 632 HPX-HD
The HIAB KM 632 HPX-HD is a grab for short logs, brush and branches with the heavy-duty HPX drive, with a load capacity of 2000 kg.
The HIAB KM 632 HPX-HD is a grab with the heavy-duty HPX drive, designed for loading short logs, brush, branches and similar material. With a closing force of 31 kN, it holds awkward loads firmly.
A check valve maintains constant pressure even in the event of an unexpected pressure drop, and HPX technology guarantees a reliable connection with low maintenance. It can also be ordered as a set with the KM 04 rotator, KM 501 (4500) upper suspension and a check valve.
The grab width is 400 mm and the weight is 265 to 270 kg. The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Heavy-duty HPX drive (Heavy Duty)
- Load capacity 2000 kg
- Closing force 31 kN
- Grip area 0.2 m², arm span 1290 mm
- Check valve for constant pressure
| Technical specifications | KM 632 HPX-HD 0.16 WF | KM 632 HPX-HD 0.16 WS |
|---|---|---|
| Catalog number | 3383806 | 3383814 |
| Grip area (m²) | 0.2 | 0.2 |
| Load capacity (kg) | 2000 | 2000 |
| Closing force (kN) | 31 | 31 |
| Arm span (mm) | 1290 | 1290 |
| Height (mm) | 1250 | 1340 |
| Length (mm) | 550 | 550 |
| Width (mm) | 400 | 400 |
| Weight (kg) | 265 | 270 |
Detailed technical specifications for each version are available on request.
