Log handling grab X series
The HIAB X series are log grabs in the X 43 and X 53 models, with a grip area of 0.4 to 0.5 m² and a closing force of up to 18 kN.

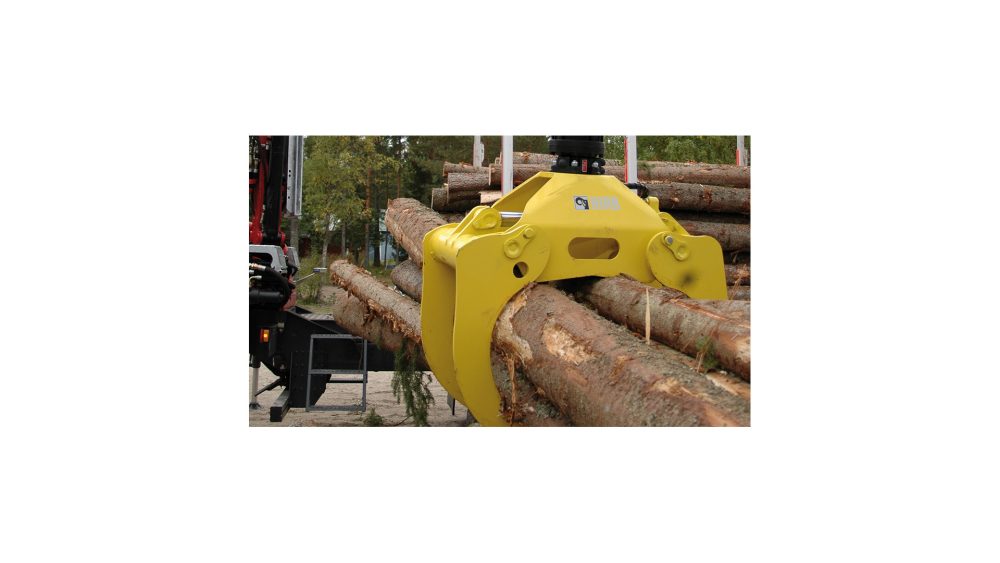

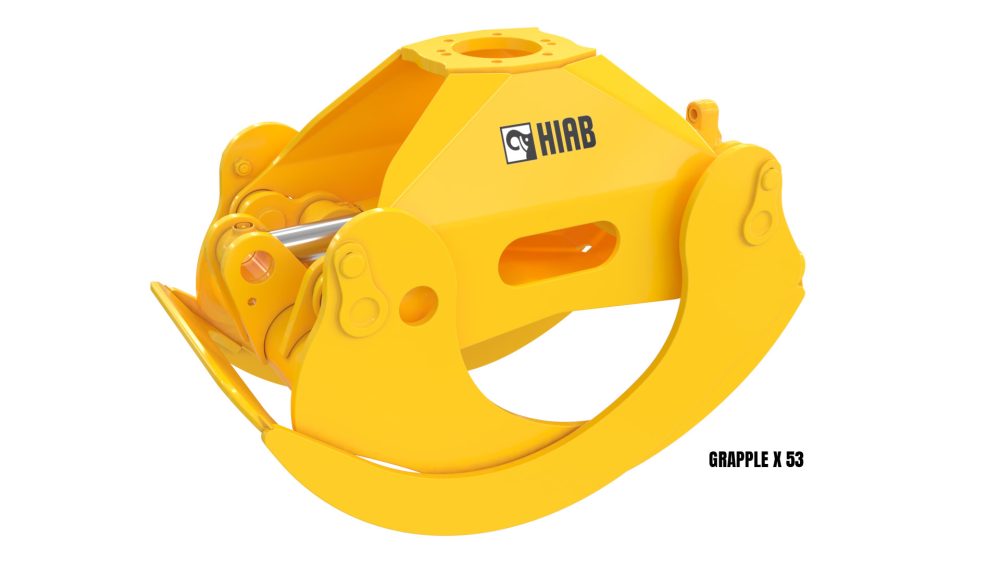

HIAB X series grabs are designed for loading and handling logs with forestry and loader cranes. The series includes the X 43 and X 53 models, with a grip area of 0.4 m² and 0.5 m² respectively, and a closing force of 18 kN and 17 kN respectively.

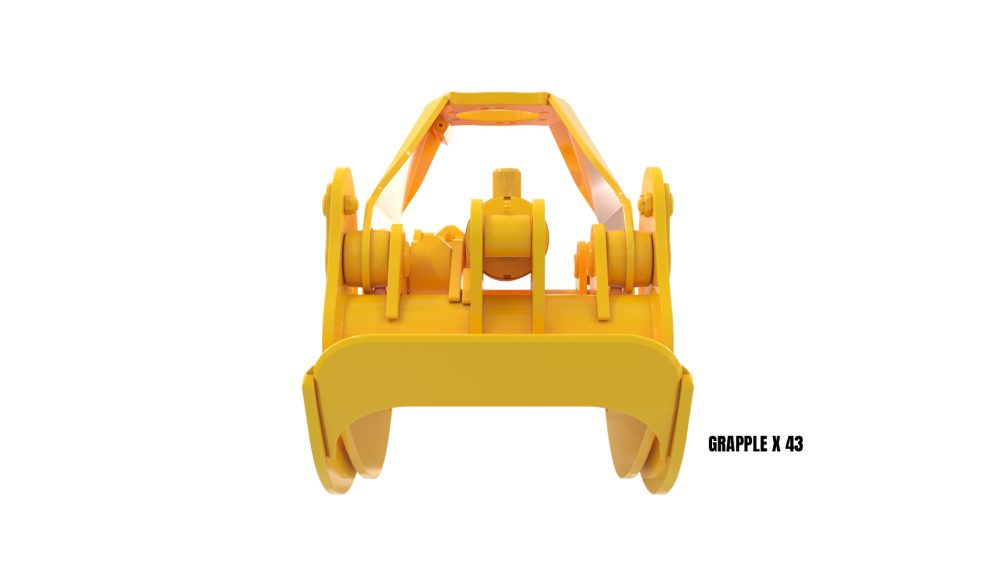

The X 43 model is also available in a CV version with a locking valve, which holds the load in the grab. The arm span is 1825 mm for the X 43 and 1985 mm for the X 53, the width is 528 mm and the weight ranges from 220 to 225 kg.
X series grabs weigh from 220 to 225 kg, so they differ mainly in grip area and arm span. The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- X 43 and X 53 models
- Grip area from 0.4 to 0.5 m²
- Closing force from 17 to 18 kN
- Arm span from 1825 to 1985 mm
- CV version with locking valve (X 43)
| Technical specifications | X 43 | X 43 CV | X 53 |
|---|---|---|---|
| Catalog number | 94290720 | 94290721 | 94290724 |
| Grip area (m²) | 0.4 | 0.4 | 0.5 |
| Closing force (kN) | 18 | 18 | 17 |
| Arm span (mm) | 1825 | 1825 | 1985 |
| Width (mm) | 528 | 528 | 528 |
| Weight (kg) | 220 | 220 | 225 |
Detailed technical specifications for each version are available on request.
