Log handling grab TX series
The HIAB TX series are log grabs in the TX 56, TX 86 and TX 811 models, with a grip area of up to 0.8 m² and a closing force of up to 21.7 kN.

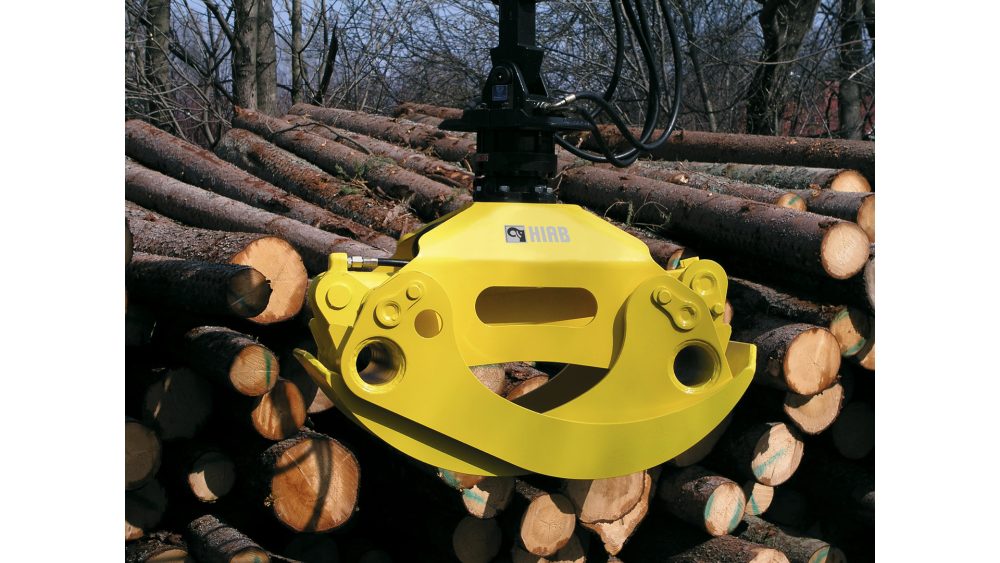

HIAB TX series grabs are designed for loading and handling logs with forestry and loader cranes, and are the largest in this group. The series includes the TX 56, TX 86 and TX 811 models, with a grip area of 0.5 to 0.8 m² and a closing force of 19.1 to 21.7 kN.
The models are available in eight versions, including B designs and CV versions with a locking valve, which holds the load in the grab. The arm span ranges from 1975 to 2260 mm and the weight from 340 to 455 kg.
Most versions are 558 mm wide. The table below shows the range of technical specifications for all 8 versions. Send an inquiry and we will help you choose the version that suits your crane and your job.

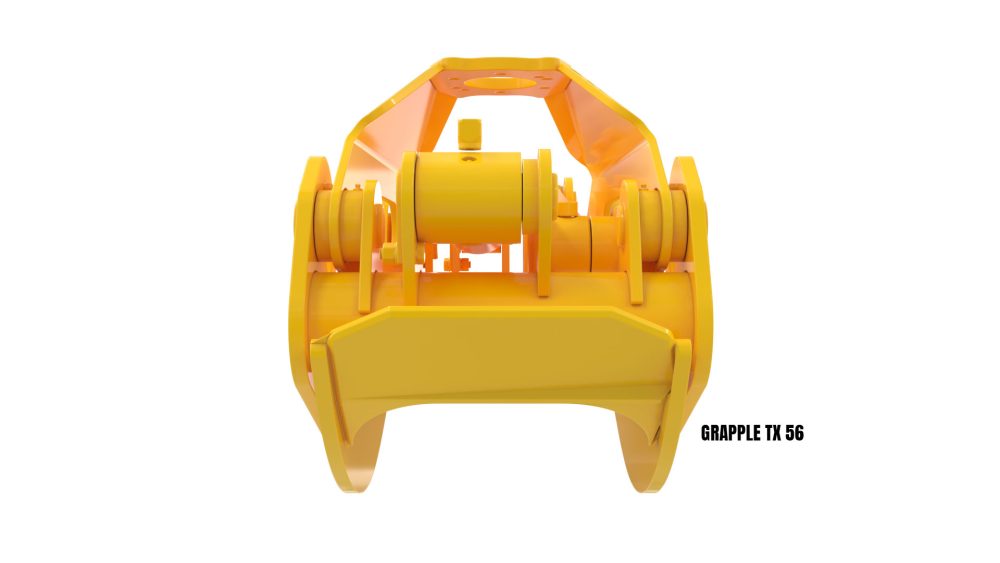

- TX 56, TX 86 and TX 811 models
- Grip area from 0.5 to 0.8 m²
- Closing force from 19.1 to 21.7 kN
- Arm span from 1975 to 2260 mm
- CV versions with locking valve
| Technical specifications | Value |
|---|---|
| Grip area (m²) | 0.5 – 0.8 |
| Closing force (kN) | 19.1 – 21.7 |
| Arm span (mm) | 2010 / 1975 / 2260 |
| Width (mm) | 558 – 1000 |
| Weight (kg) | 340 – 455 |
| Number of versions | 8 |

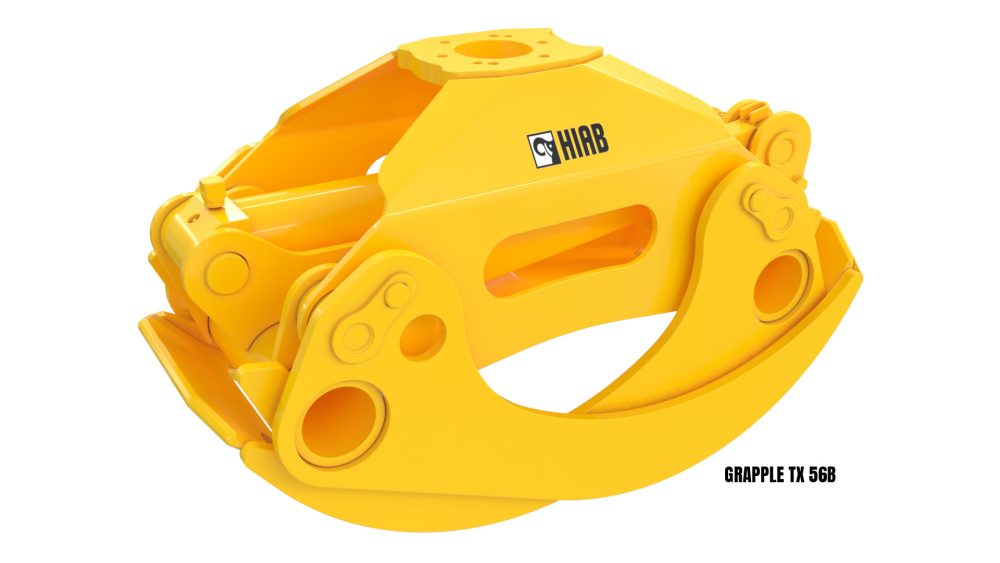

| Available versions | TX 56, TX 56B, TX 56B CV, TX 56CV, TX 86B, TX 86B CV, TX 811B, TX 811B CV |
Detailed technical specifications for each version are available on request.
