Log handling grab FX series
The HIAB FX series are log grabs in the FX 26, FX 36 and FX 42 models, with a closing force of up to 19 kN and CV versions with a locking valve.

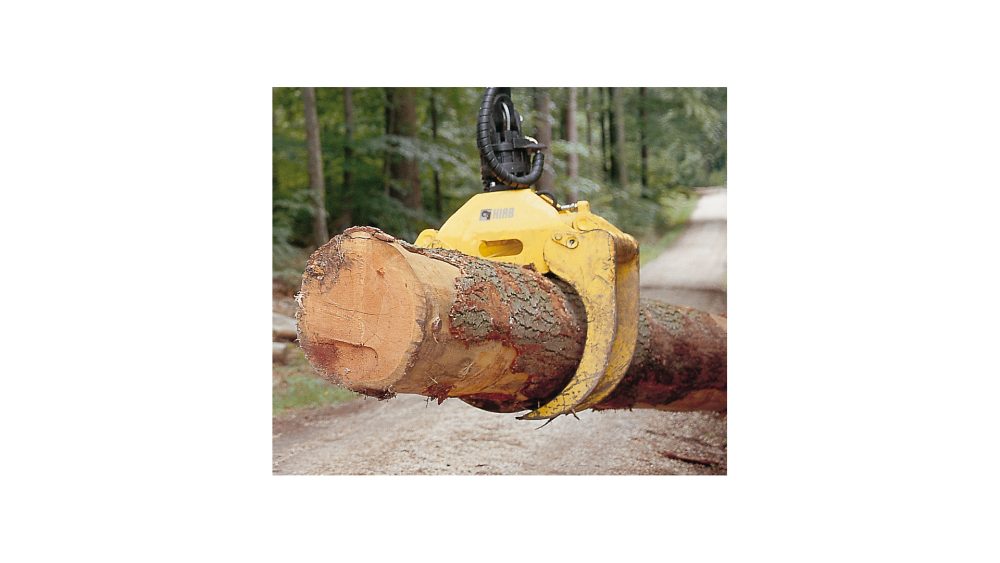

HIAB FX series grabs are designed for loading and handling logs with forestry and loader cranes. The series includes the FX 26, FX 36 and FX 42 models, with a grip area of 0.3 to 0.4 m² and a closing force of 13.1 to 19 kN.
Each model is also available in a CV version with a locking valve, which holds the load in the grab. The arm span ranges from 1485 mm for the FX 26 to 1825 mm for the FX 42, the width from 422 to 548 mm and the weight from 165 to 250 kg.
The FX 42 is the strongest model in the series, with a closing force of 19 kN. The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.

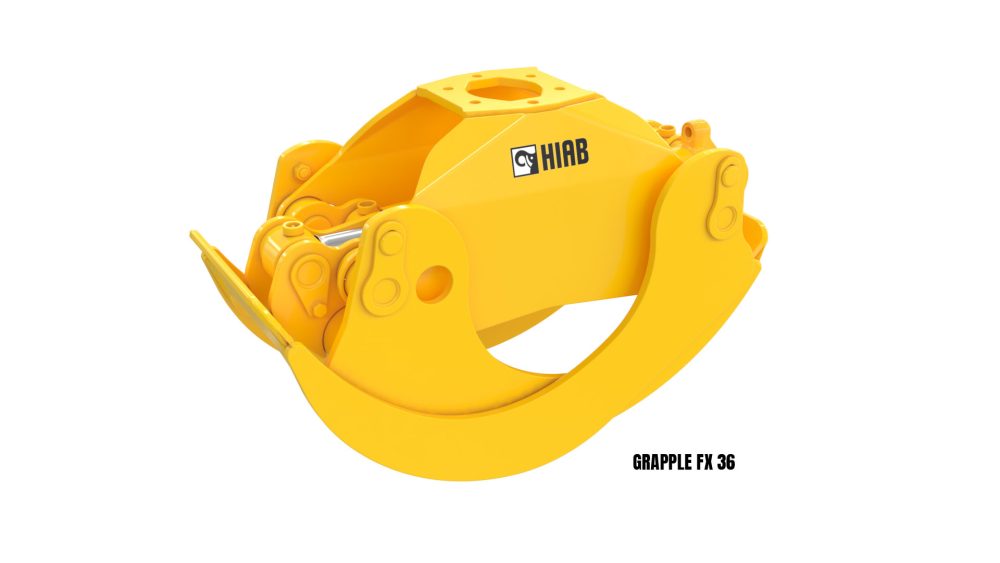

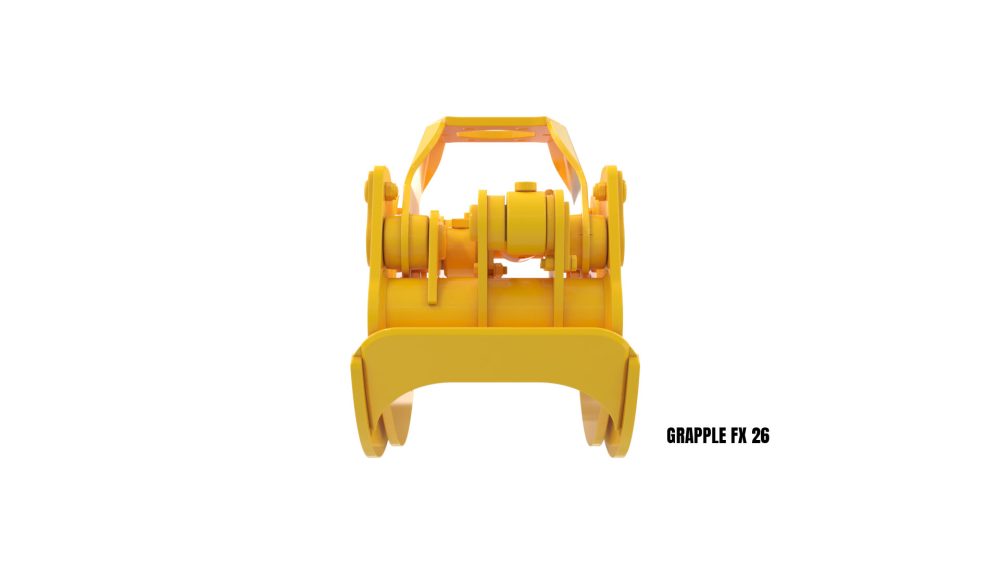

- FX 26, FX 36 and FX 42 models
- Grip area from 0.3 to 0.4 m²
- Closing force from 13.1 to 19 kN
- Arm span from 1485 to 1825 mm
- CV versions with locking valve
| Technical specifications | FX 26 | FX26 CV | FX 36 | FX 36CV | FX 42 | FX 42CV |
|---|---|---|---|---|---|---|
| Catalog number | 94290870 | 94290755 | 94290895 | 94290756 | 94290860 | 94290881 |
| Grip area (m²) | 0.4 | 0.4 | 0.3 | 0.4 | 0.4 | 0.4 |
| Closing force (kN) | 14.1 | 14.1 | 13.1 | 13.1 | 19 | 19 |
| Arm span (mm) | 1485 | 1485 | 1650 | 1650 | 1825 | 1825 |
| Width (mm) | 422 | 422 | 422 | 422 | 548 | 548 |
| Weight (kg) | 165 | 165 | 175 | 175 | 250 | 250 |
Detailed technical specifications for each version are available on request.
