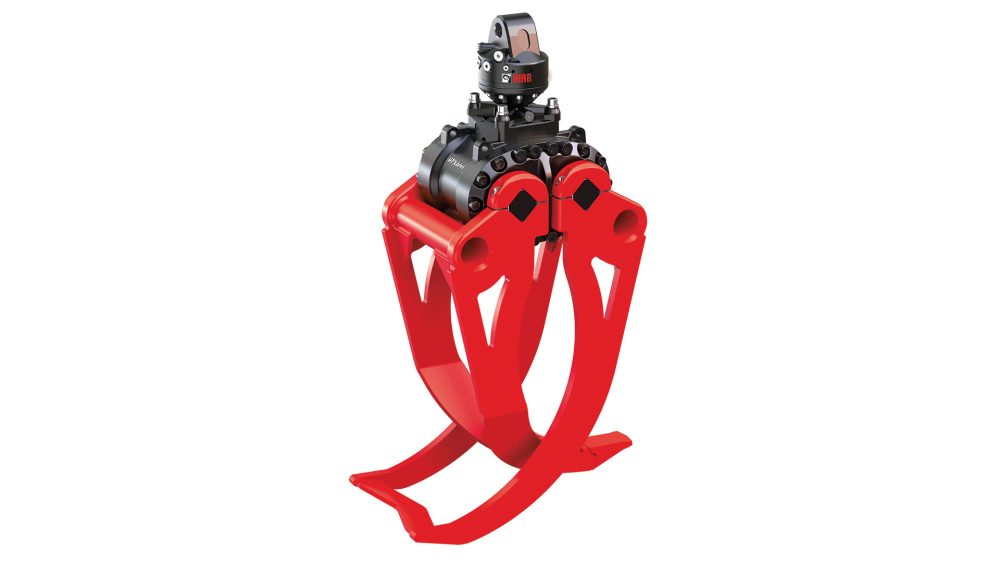

Stone and curb grab KM 613 HPX-HD
The HIAB KM 613 HPX-HD is a grab for laying and handling natural stone and curbs, with the heavy-duty HPX drive and a load capacity of 2000 kg.
The HIAB KM 613 HPX-HD is a grab with the heavy-duty HPX drive, designed for laying and handling natural stone, curbs and similar loads. The load capacity is 2000 kg and the closing force is 22 kN.
A check valve maintains constant pressure even in the event of an unexpected pressure drop, so the load stays securely gripped. HPX technology guarantees a reliable connection with low maintenance. It can also be ordered as a set with the KM 04 rotator, KM 501 (4500) upper suspension and a check valve.
The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Heavy-duty HPX drive (Heavy Duty)
- Load capacity 2000 kg and closing force 22 kN
- Arm span 1710 mm
- For natural stone, curbs and similar loads
- Check valve for constant pressure
| Technical specifications | KM 613 HPX-HD 0.35 WF | KM 613 HPX-HD 0.35 WS |
|---|---|---|
| Catalog number | 3383784 | 3383792 |
| Grip area (m²) | 0.4 | 0.4 |
| Load capacity (kg) | 2000 | 2000 |
| Closing force (kN) | 22 | 22 |
| Arm span (mm) | 1710 | 1710 |
| Height (mm) | 1485 | 1575 |
| Length (mm) | 780 | 780 |
| Width (mm) | 400 | 400 |
| Weight (kg) | 335 | 310 |
Detailed technical specifications for each version are available on request.
