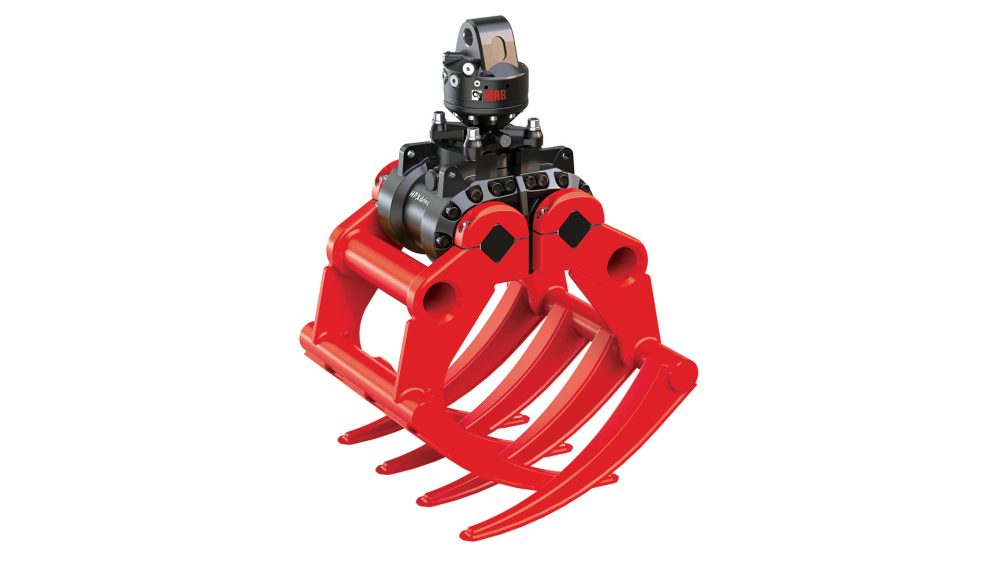

Grab for branches, hay and compost KM 641 HPX
The HIAB KM 641 HPX is a grab for hay, branches and compost with the standard HPX drive, with a load capacity of up to 2000 kg.
The HIAB KM 641 HPX is a grab with the standard HPX drive, designed for handling hay, branches, compost and similar material – often in municipal services and road maintenance. The HPX drive ensures reliable operation with low maintenance.
It is available in versions with a grip area of 0.2 and 0.4 m² and load capacities of 1000 and 2000 kg. It can also be ordered as a set with the KM 04 rotator, KM 501 (4500) upper suspension, a pressure relief valve and a check valve.
The grab height ranges from 1185 to 1515 mm and the width from 670 to 940 mm. The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Standard HPX drive
- Load capacity up to 2000 kg
- Grip area from 0.2 to 0.4 m²
- Closing force from 14 to 18 kN
- Arm span from 1190 to 1630 mm
| Technical specifications | KM 641 HPX 0.2 WF | KM 641 HPX 0.4 WF | KM 641 HPX 0.2 WS | KM 641 HPX 0.4 WS |
|---|---|---|---|---|
| Catalog number | 3383598 | 3383610 | 3383601 | 3383628 |
| Grip area (m²) | 0.2 | 0.4 | 0.2 | 0.4 |
| Load capacity (kg) | 1000 | 2000 | 1000 | 2000 |
| Closing force (kN) | 18 | 14 | 18 | 14 |
| Arm span (mm) | 1190 | 1630 | 1190 | 1630 |
| Height (mm) | 1185 | 1425 | 1275 | 1515 |
| Length (mm) | 620 | 740 | 620 | 740 |
| Width (mm) | 670 | 940 | 670 | 940 |
| Weight (kg) | 225 | 295 | 230 | 300 |
Detailed technical specifications for each version are available on request.
