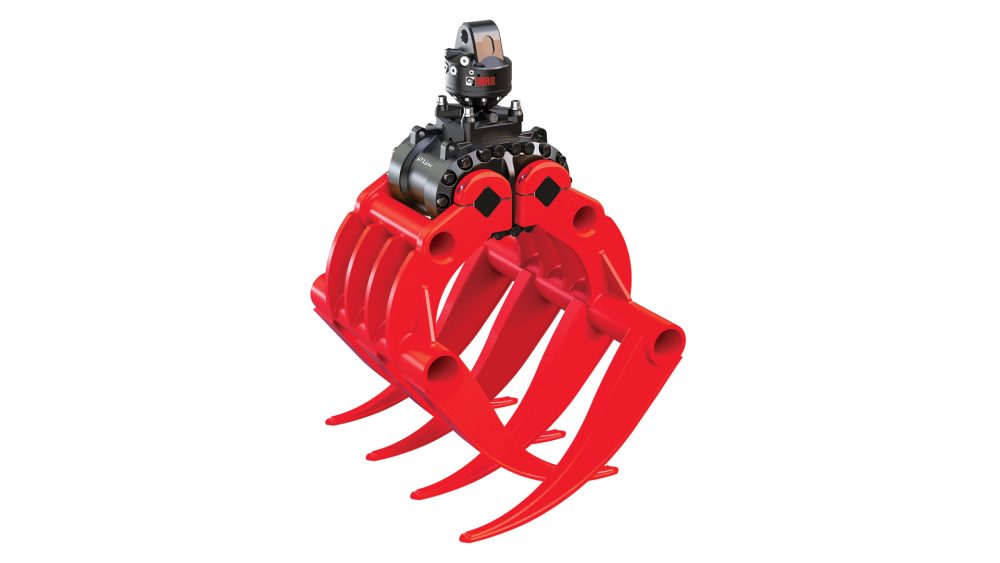

Grab for branches, hay and compost KM 641 HPX-HD
The HIAB KM 641 HPX-HD is a grab for hay, branches, compost and manure with the heavy-duty HPX drive, with a load capacity of 2000 kg.
The HIAB KM 641 HPX-HD is a hay and forestry grab with the heavy-duty HPX drive. It is ideal for handling hay, branches, compost or manure, and is often used by municipal services and in road maintenance.
A check valve maintains constant pressure even in the event of an unexpected pressure drop, and HPX technology guarantees a reliable connection with low maintenance. It can also be ordered as a set with the KM 04 rotator, KM 501 (4500) upper suspension and a check valve.
The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Heavy-duty HPX drive (Heavy Duty)
- Load capacity 2000 kg
- Grip area 0.4 m² and closing force 23 kN
- Arm span 1720 mm, width 940 mm
- Check valve for constant pressure
| Technical specifications | KM 641 HPX-HD 0.4 WF | KM 641 HPX-HD 0.4 WS |
|---|---|---|
| Catalog number | 3383822 | 3383831 |
| Grip area (m²) | 0.4 | 0.4 |
| Load capacity (kg) | 2000 | 2000 |
| Closing force (kN) | 23 | 23 |
| Arm span (mm) | 1720 | 1720 |
| Height (mm) | 1435 | 1525 |
| Length (mm) | 745 | 745 |
| Width (mm) | 940 | 940 |
| Weight (kg) | 375 | 380 |
Detailed technical specifications for each version are available on request.
