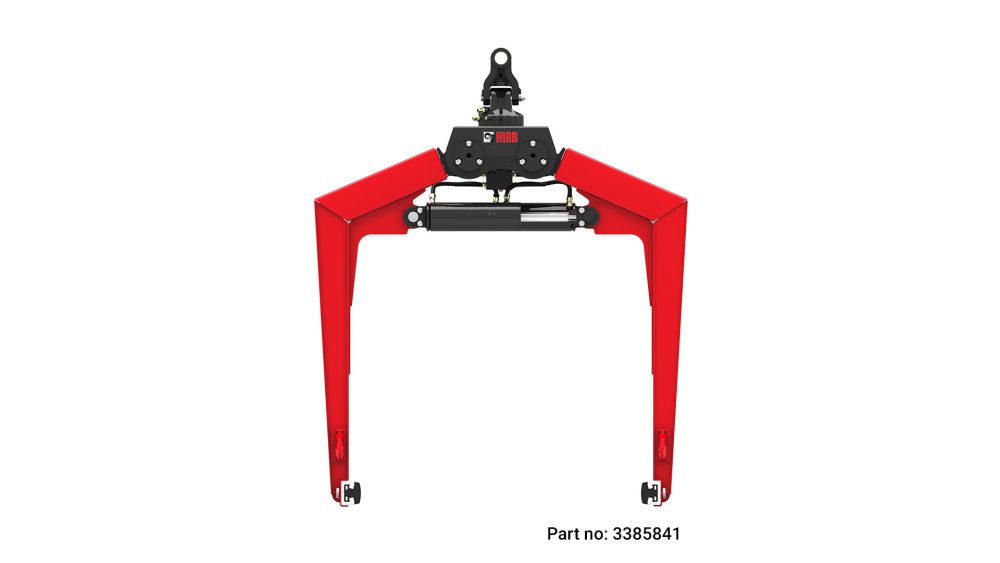

Brick grab KM 331
The HIAB KM 331 brick grab is a robust grab with a load capacity of up to 2000 kg and a grip depth of 1000 to 1300 mm.

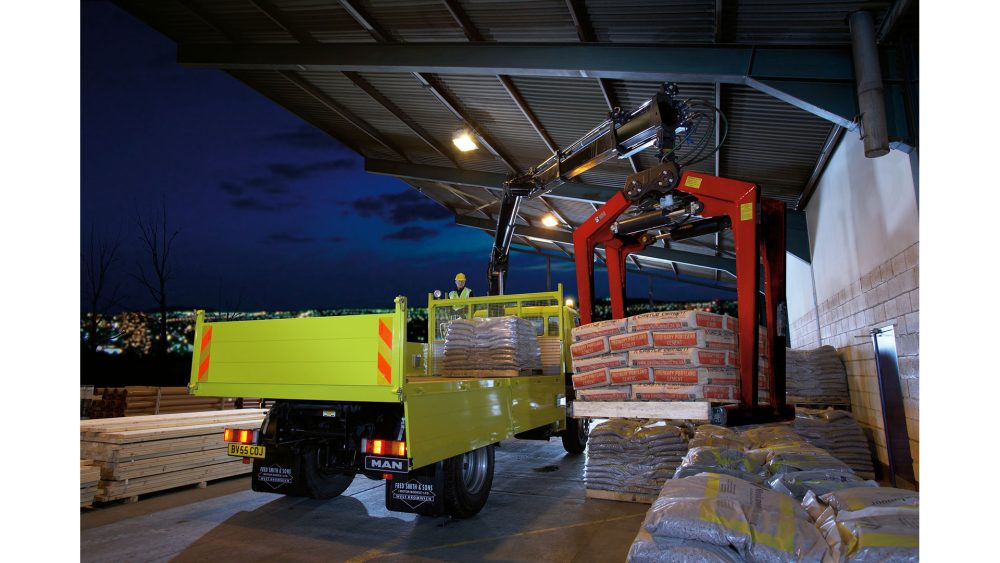

The robust HIAB KM 331 brick grab handles loads of up to 2000 kg. It is designed for use with loader cranes when unloading and moving bricks and blocks, and is available in four versions, with a grip depth of 1000 to 1300 mm.
All versions have a width of 500 mm and a 4 x 140 mm connection, and the grab weighs from 255 to 270 kg. The load capacity is 2000 kg for versions with a grip depth of 1000 and 1100 mm, 1800 kg for the 1200 mm version, and 1600 kg for the 1300 mm version.
It can also be ordered as a set with the KM 04 F rotator, KM 203 01 short connecting hoses, KM 501 (4500) upper suspension, KM 381 40 pressure rails, a pressure relief valve and a holding valve.
The table lists the manufacturer's catalog number for each version, which makes precise ordering easier. Send an inquiry and we will help you choose the version that suits your crane and your job.
- Load capacity up to 2000 kg
- Grip depth from 1000 to 1300 mm
- 4 x 140 mm connection
- Also available as a complete package with a rotator
| Technical specifications | KM331-1000 | KM331 – 1100 | KM331 – 1200 | KM331 – 1300 |
|---|---|---|---|---|
| Catalog number | 9854461 | 9854479 | 9854487 | 9854495 |
| Load capacity (kg) | 2000 | 2000 | 1800 | 1600 |
| Grip depth (mm) | 1000 | 1100 | 1200 | 1300 |
| Connection | 4 x 140 mm | 4 x 140 mm | 4 x 140 mm | 4 x 140 mm |
| Width (mm) | 500 | 500 | 500 | 500 |
| Weight (kg) | 255 | 260 | 265 | 270 |
Detailed technical specifications for each version are available on request.
